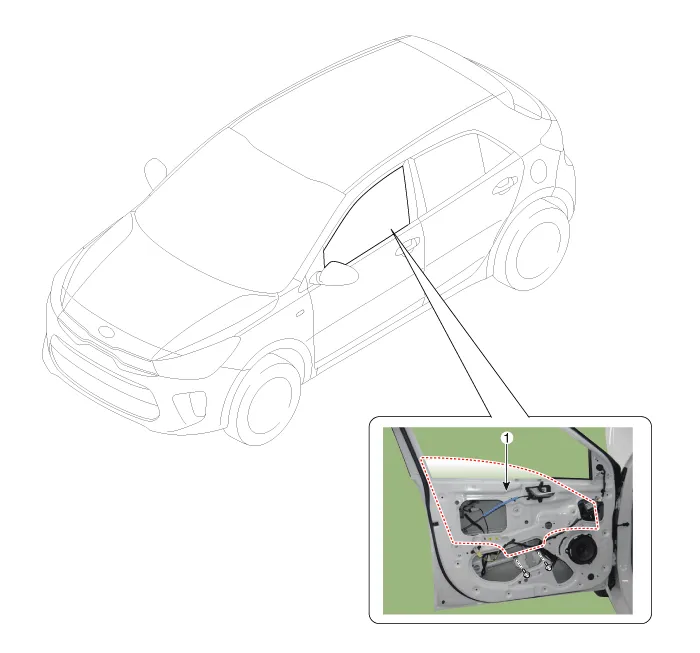

1. Front door window glass

Repair procedures

Replacement

Put on gloves to protect your hands.

•	Use a plastic panel removal tool to remove interior trim pieces without marring the surface.

•	Be careful not to bend or scratch the trim and panels.

1.	Remove the front door trim. (Refer to Front Door - "Front Door Trim")

2.	Remove the door pull handle mounting support (A) after loosening the screws.

3.	Disconnect the front door speaker connector (A), and then remove the wiring mounting clips.

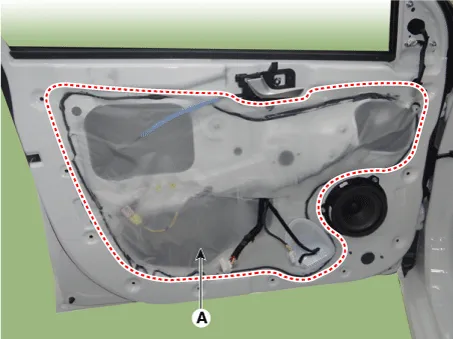

4.	Remove the front door trim seal (A).

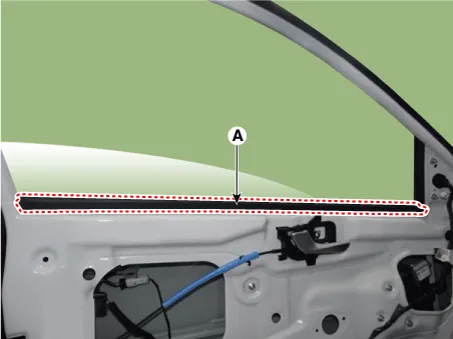

5.	Remove the front door belt inside weather strip (A).

By operating the power window switch, pull down until the window glass mounting bolt is visible.

Be careful not to damage the glass surface.

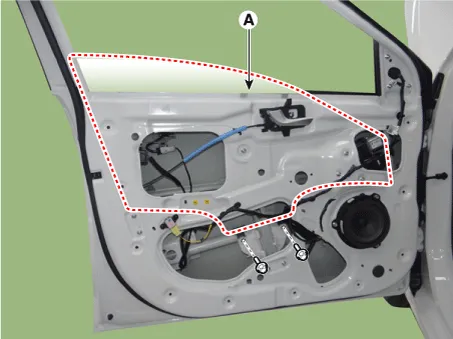

Loosen the mounting bolt, and pull out the front door window glass (A) by tilting it sideways.

Be careful not to drop the glass and/or scratch the glass surface.

•	Use the door switch to align the mounting bolt in the door.

•	If the window motor cannot be operated, remove the motor and align the hole by hand.

Install in the reverse order of removal.

•	Check that glass operation is normal.

•	Check the damage glass channel, and replace if necessary.

•	Adjust glass if necessary.
