Repair procedures

Replacement

Put on gloves to protect your hands.

•	Use a plastic panel removal tool to remove interior trim pieces without marring the surface.

•	Be careful not to bend or scratch the trim and panels.

1.	Remove the front door trim. (Refer to Front Door - "Front Door Trim")

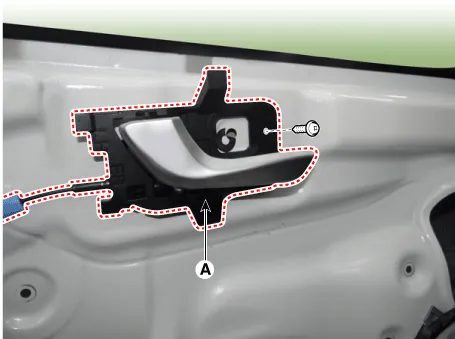

2.	Separate the inside handle (A) after loosening the mounting screw.

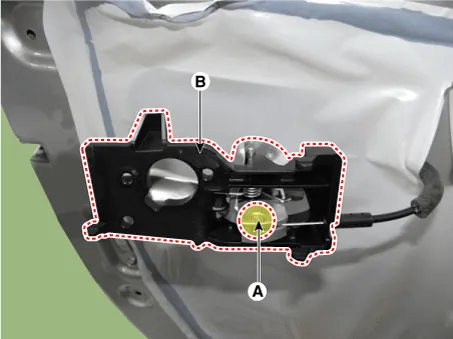

3.	Remove the front door inside handle (B) after disconnecting the cable (A).

Install in the reverse order of removal.

•	Check that glass operation is normal.

•	Check the damage glass channel, and replace if necessary.

•	Adjust glass if necessary.
