Kia Rio: Front Door / Front Door Trim

Kia Rio 2017-2023 YB Service Manual / Body (Interior and Exterior) / Front Door / Front Door Trim

Components and components location

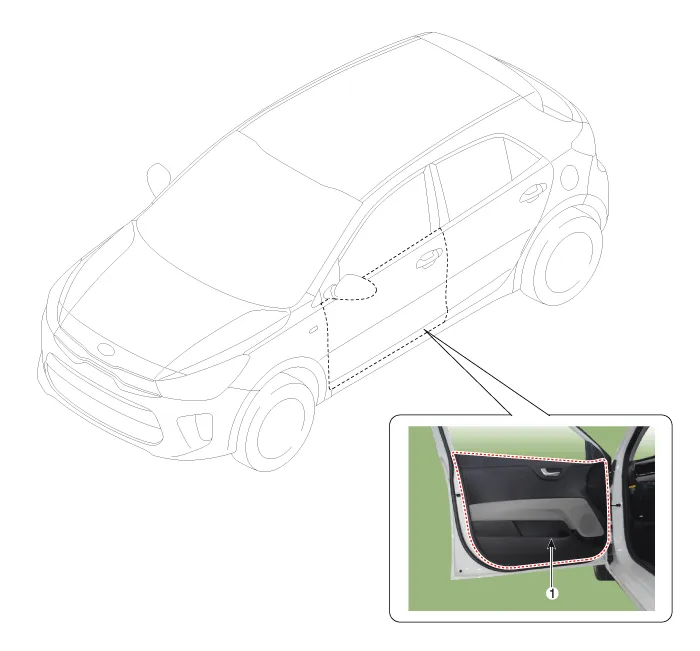

Component Location

1. Front door trim

Repair procedures

Replacement

Put on gloves to protect your hands.

•	Use a plastic panel removal tool to remove interior trim pieces without marring the surface.

•	Take care not to bend or scratch the trim and panels.

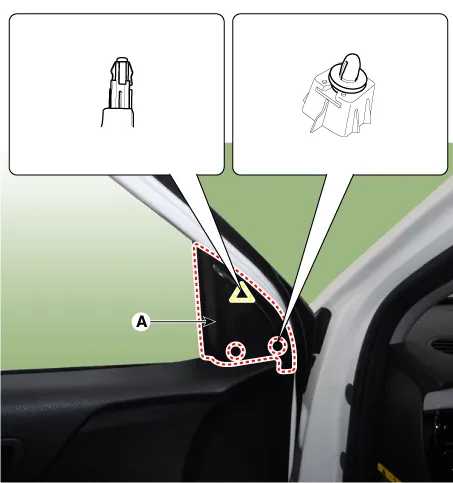

1.	Separate the front door quadreant inner cover (A) by using the remover.

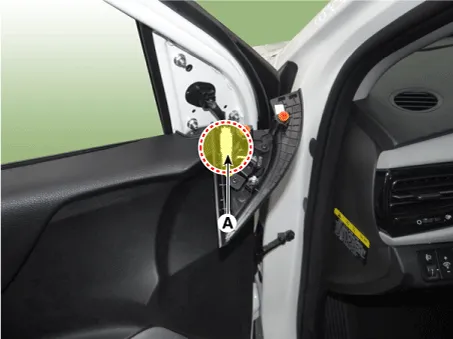

2.	Disconnect the front door tweeter speaker connector (A).

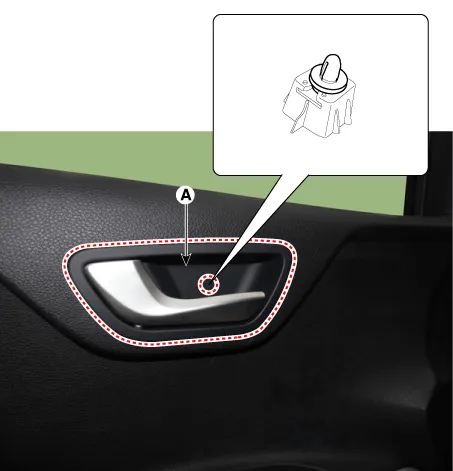

3.	Remove the front door inside handle cap (A) by using the remover.

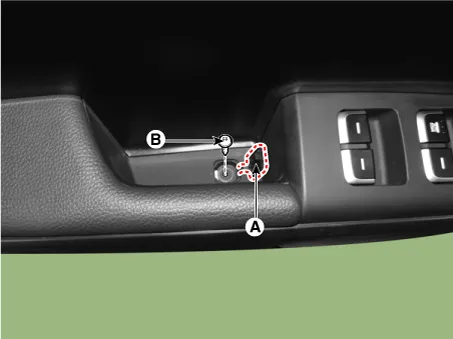

4.	Loosen the screw (B) after opening the cap (A).

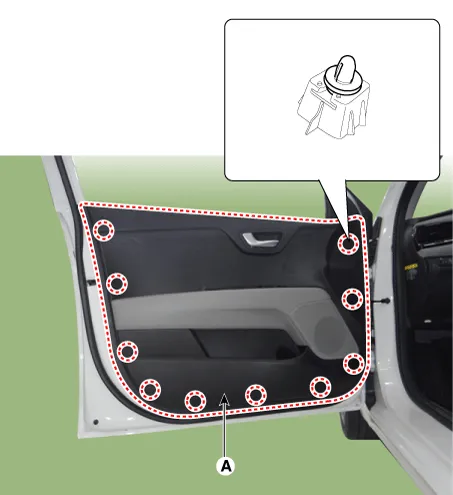

5.	Remove the door trim (A).

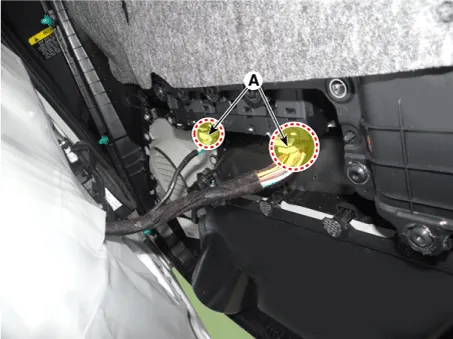

6.	Disconnect the power window switch connector (A).

Install in the reverse order of removal.

•	Make sure the connector is connected properly.

•	Make sure the door locks/unlocks and opens/closes properly.

•	Replace any damaged clips.
