Kia Rio: Front Door / Front Door Side Weatherstrip
Repair procedures
| Replacement |
| 1. |

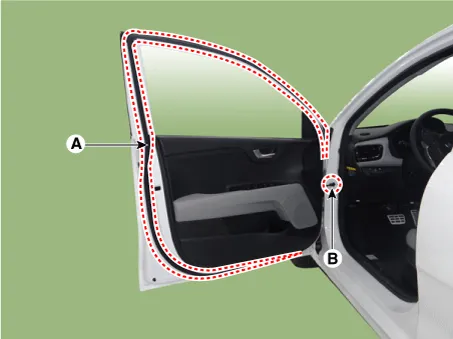

Loosen the front door checker (B) mounting bolt.
|
| 2. |
Detach the clips, and then remove the front door side weatherstrip (A).
|
| 3. |
Install in the reverse order of removal.
|
