Kia Rio: Front Door / Front Door Belt Outside Weatherstrip

Kia Rio 2017-2023 YB Service Manual / Body (Interior and Exterior) / Front Door / Front Door Belt Outside Weatherstrip

Repair procedures

Replacement


Put on gloves to protect your hands.


•

Use a plastic panel removal tool to remove interior trim pieces without marring the surface.

•

Be careful not to bend or scratch the trim and panels.

1.

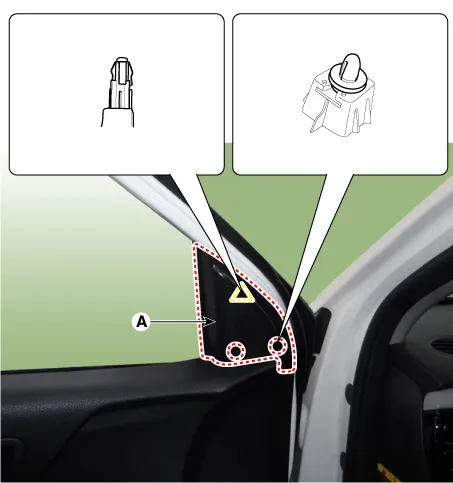

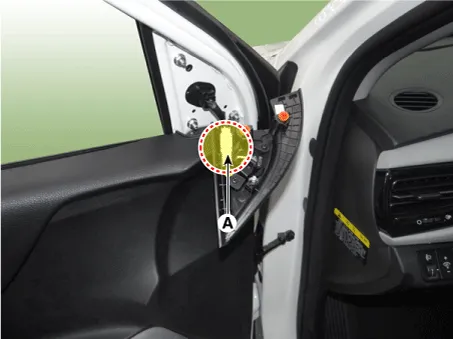

Separate the front door quadrant inner cover (A) by using a or remover.

2.

Remove the front door tweeter speaker connector (A).

3.

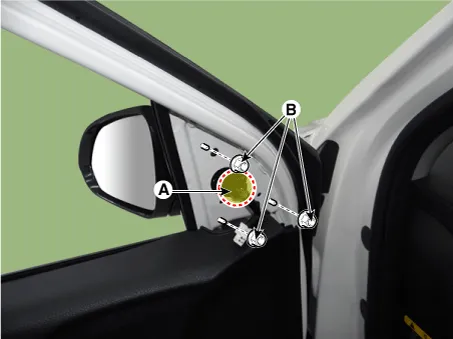

Disconnect the outside rear view mirror connector (A) and loosen the nuts (B).

4.

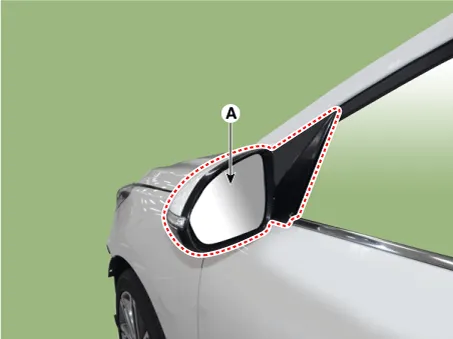

Remove the outside rear view mirror (A).

5.

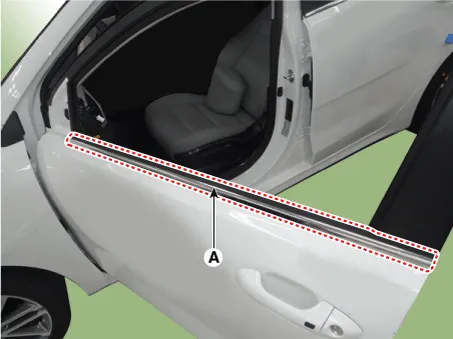

Remove the front door belt outside weather strip (A).

6.

Install in the reverse order of removal.


•

Make sure that the connector is connected properly.

•

Make sure that the door locks/unlocks and opens/closes properly.

•

Replace any damaged clips.
