Kia Rio: Front Door / Front Door Belt Inside Weatherstrip

Kia Rio 2017-2023 YB Service Manual / Body (Interior and Exterior) / Front Door / Front Door Belt Inside Weatherstrip

Repair procedures

Replacement
1.

Remove the front door trim.

(Refer to Front Door - "Front Door Trim")

2.

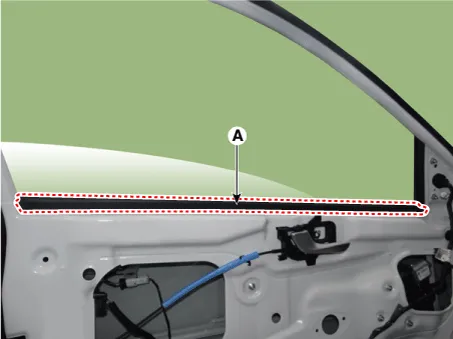

Remove the front door belt inside weatherstrip (A).
3.

Install in the reverse order of removal.


•

Replace any damaged clips.
•

Make sure that the connector is connected properly.
•

Make sure that the door locks/unlocks and opens/croses properly.
