Kia Rio: Cylinder Block / Fly Wheel

Repair procedures

Removal
1.

Remove the manual Transaxle.

(Refer to Manual Transaxle System - "Manual Transaxle")

2.

Remove the clutch cover.

(Refer to Clutch System - "Clutch Cover and Disc")

3.

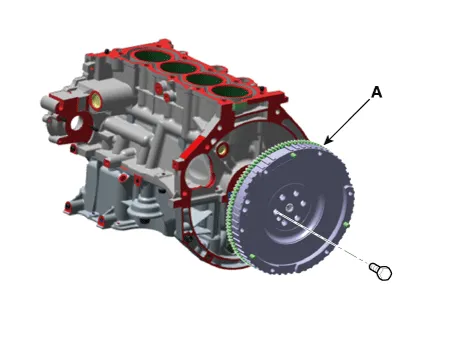

Remove the flywheel (A).

Tightening torque :

68.6 - 78.5 N·m (7.0 - 8.0 kgf·m, 50.6 - 57.9 lb·ft)

4.

Install in the reverse order of removal.
