Kia Rio: Cylinder Block / Rear Oil Seal

Kia Rio 2017-2023 YB Service Manual / Engine Mechanical System / Cylinder Block / Rear Oil Seal

Repair procedures

Replacement
1.

Remove the transaxle assembly.

(Refer to Manual Transaxle System - "Manual Transaxle")

(Refer to Automatic Transaxle System - "Automatic Transaxle")

2.

MT : Remove the flywheel.

(Refer to Cylinder Block - "Flywheel")

AT : Remove the drive plate.

(Refer to Cylinder Block - "Drive Plate")

3.

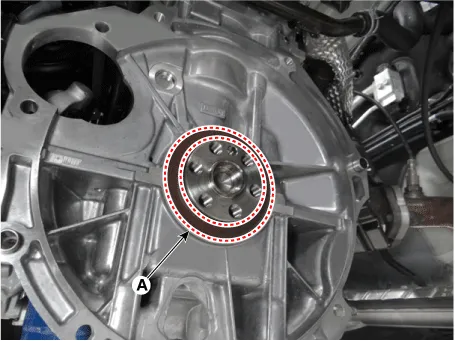

Remove the rear oil seal (A)
4.

Install the new rear oil seal.

(1)

Apply engine oil on the edge of new oil seal.
(2)

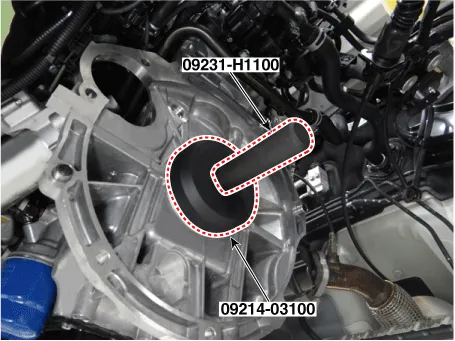

Using the SST (09231-H1100, 09214-03100) and a hammer, tap in the oil seal until its surface is flush with the rear oil seal retainer edge.



Always use new rear oil seal.
5.

Install the other parts in the reverse order of removal.
