Kia Rio: Cylinder Block / Drive Plate

Kia Rio 2017-2023 YB Service Manual / Engine Mechanical System / Cylinder Block / Drive Plate

Repair procedures

Remove and Installation
1.

Remove the automatic transaxle .

(Refer to Automatic Transaxle System - "Automatic Transaxle")

2.

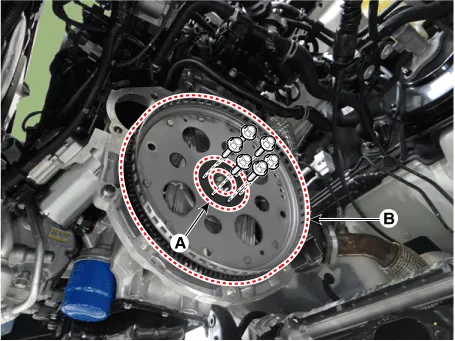

Remove the adapter plate (A) and drive plate (B).

Tightening torque :

68.6 - 78.5 N·m (7.0 - 8.0 kgf·m, 50.6 - 57.9 lb·ft)

3.

Install in the reverse order of removal.
