| Specifications |
|
Item |
Specifications |
|
Working voltage |
DC 12.5V |
|
Operating force |
Initial position : 0.25 ± 0.15N(0.025 ± 0.015kg, 0.056 ± 0.034lb) |
|
Full position : 0.8 ± 0.2 N(0.08 ± 0.02 kgf, 0.579 ± 0.014 lb-ft) |
|
|
Working temperature |
-40°C to 80°C (-40°F to 176°F) |
| Description |
| – |

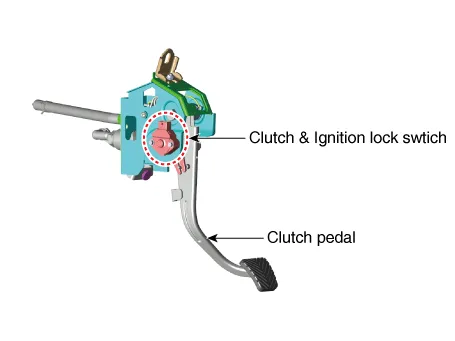

Ignition lock switch is mounted on the clutch pedal. |
| – |
Ignition lock switch is operated when you press the clutch pedal. |
| – |
If the clutch pedal is not pressed down, the engine is not started. |

| Inspection |
Component Inspection
| 1. |
Remove the clutch & ignition lock switch. |
| 2. |

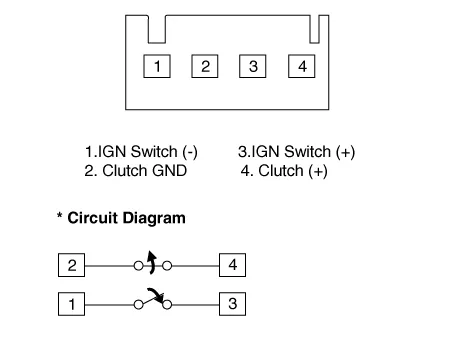

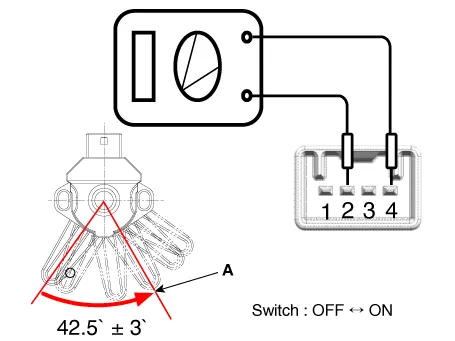

Rotate the switch lever to the direction of the arrow to check the operating point (A).
|
| Removal |
| 1. |
Turn ignition switch OFF and disconnect the negative (-) battery cable. |
| 2. |

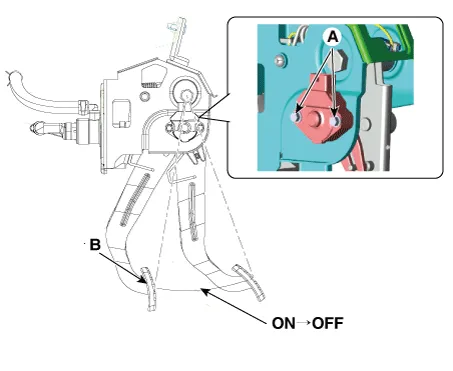

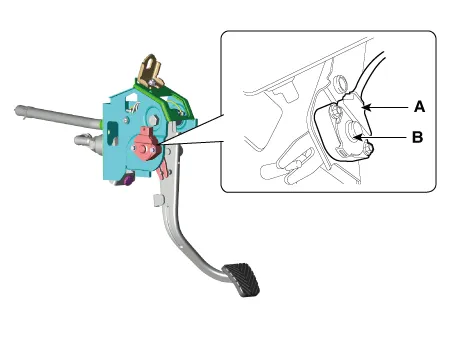

Disconnect the ignition lock switch connector (A). |
| 3. |
Remove the ignition lock and clutch switch (B).
|
| Installation |
| 1. |
Install in the reverse order of removal.
|
