Kia Rio: Exhaust Emission Control System / Catalytic Converter

Description and operation

Description

The catalytic converter of the gasoline engine is a three way catalyst. It oxidizes carbon monoxide and hydrocarbons (HC), and separates oxygen from the oxides of nitrogen (NOx).

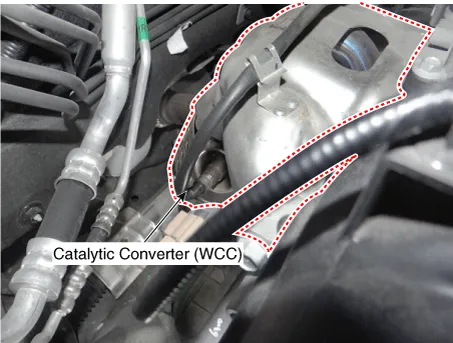

[WCC]

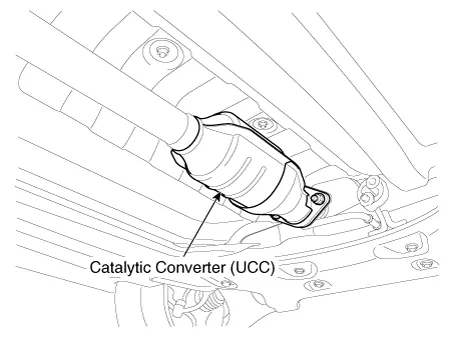

[UCC]
