Kia Rio: Cooling System / Water pump

Kia Rio 2017-2023 YB Service Manual / Engine Mechanical System / Cooling System / Water pump

Repair procedures

Removal and Installation

1.	Disconnect the battery negative terminal.

2.	Drain the coolant. (Refer to Cooling System - "Coolant")

3.	Remove the drive belt. (Refer to Drive Belt System - "Drive Belt")

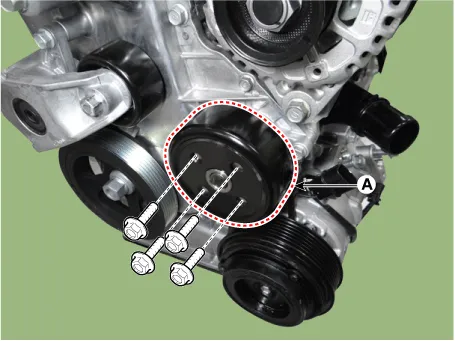

Remove the water pump pulley (A).

Tightening torque :

12.7 - 14.7 N·m (1.3 - 1.5 kgf·m, 9.4 - 10.8 lb·ft)

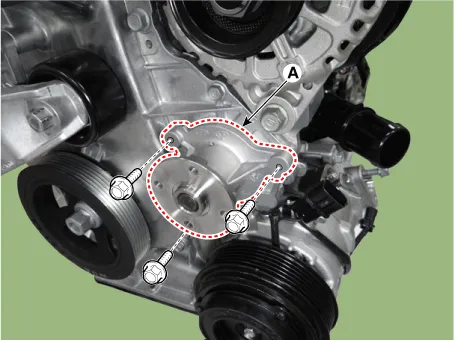

Remove the water pump (A) with O-ring.

Tightening torque :

9.8 - 11.8 N·m (1.0 - 1.2 kgf·m, 7.2 - 8.7 lb·ft)

Install in the reverse order of removal.

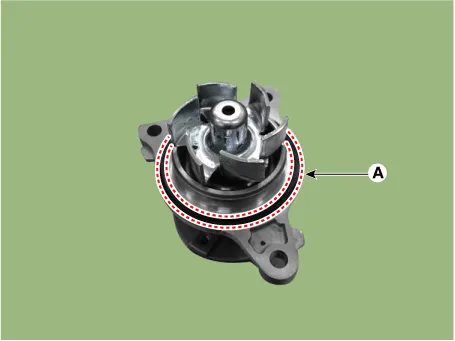

Install a new water pump O-ring (A).

7.	Fill with engine coolant. (Refer to Cooling System - "Coolant")

8.	Start the engine and check for leaks.

9.	Recheck the engine coolant level.

Inspection

1.	Check each part for cracks, damage or wear, and replace the coolant pump assembly if necessary.

2.	Check the bearing for damage, abnormal noise and sluggish rotation, and replace the coolant pump assembly if necessary.

Check for coolant leakage. If coolant leaks from hole, the seal is defective. Replace the coolant pump assembly and gasket.

A small amount of “weeping” from the bleed hole is normal.

Troubleshooting

Water Pump

Symptoms

Possible Causes

Remedy

Coolant leakage

•	From the bleed hole of the water pump

Visually check

•	Check leaks after about ten-minute warming up.

•	If coolant still leaks, replace a water pump.

•	If leakage stops, reuse the water pump (Do not replace the pump with a new one).

•	From gaskets or bolts

•	Check the tightening of the water pump mounting bolts.

•	Retighten the mounting bolts.

•	Check damage of gaskets or inflow of dust.

•	Replace the gasket and clean dust off.

•	From outer surface of water pump

•	Check the material or any cracks of the water pump.

•	Poor material. If any crack found, replace the water pump.

Noise

•	From bearings

•	From mechanical seals

•	Impeller interference

Inspection with a stethoscope

•	After starting the engine, check noise with a stethoscope.

•	If there is no noise, reuse the water pump (do not replace it).

•	If there is any noise from the water pump, remove the drive belt and recheck.

Inspection after removing a drive belt

•	After removing a water pump and a drive belt, check noise again.

•	If there is noise, reuse the water pump. Check other drive line parts.

•	If there is no noise, replace the water pump with a new one.

Inspection after removing a water pump

•	After removing a water pump and a drive belt, check noise again.

•	If there is any interference between them, replace the water pump with a new one.

Overheating

•	Damaged impeller

•	Loosened impeller

Loosened impeller

•	Corrosion of the impeller wing

•	Check engine coolant.

•	Poor coolant quality / Maintenance check

•	Impeller seperation from the shaft

•	Replace the water pump.
