| Specification |
|
Item |
Specification |
|
Coil resistance (Ω) |
30.0 ~ 35.0 [20°C(68°F)] |
| Description |
Variable Intake manifold Solenoid (VIS) valve is installed on the intake manifold. The VIS valve controls the vacuum modulator which activates a valve in the intake manifold. The ECM opens or closes this valve according to engine condition (Refer to below table).

|
Engine condition |
VIS valve |
Operation |
|
Medium speed |
Closed |
Increasing engine performance in low engine speed by reducing intake interference
among cylinders |
|
Low / High speed |
Open |
Minimizing intake resistance by shortening intake manifold length and increasing
area of air entrance |

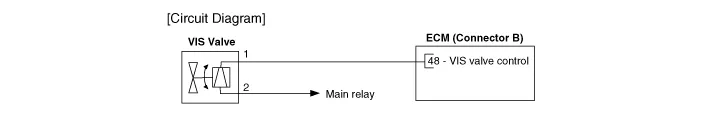

| Circuit Diagram |

| Inspection |
| 1. |
Turn the ignition switch OFF. |
| 2. |
Disconnect the VIS valve connector. |
| 3. |
Measure resistance between VIS valve terminals 1 and 2.
|
| Removal |
| 1. |
Switch "OFF" the ignition and disconnect the negative (-) battery terminal. |
| 2. |
Remove the air cleaner assembly. (Refer to Engine Mechanical System - "Air Cleaner") |
| 3. |
Remove the electronic throttle body control (ETC) module. (Refer to Engine Control System - "ETC (Electronic throttle body control) System") |
| 4. |

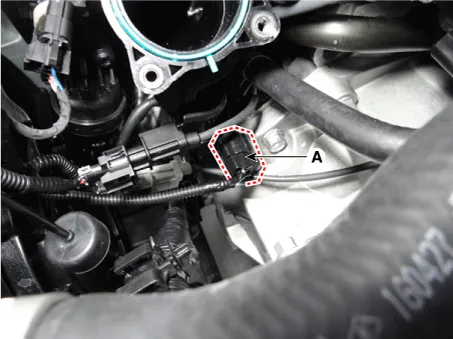

Disconnect the variable intake solenoid valve connector (A).
|
| 5. |

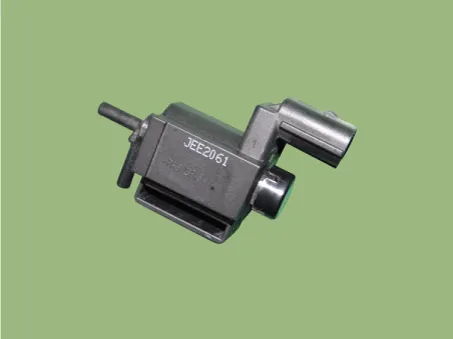

Remove the variable intake solenoid valve (A). |
| 6. |
Disconnect the vacuum hoses (B) from the valve.
|
| 7. |
Remove the variable intake solenoid valve. |
| Installation |
|
| 1. |
Installation is reverse of removal. |
