Kia Rio: Trip information (Trip computer) / Trip Modes

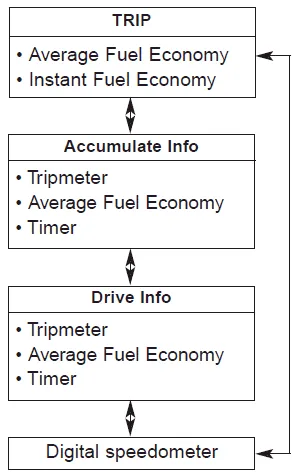

- For Type A cluster
To change the trip mode, press the TRIP button.

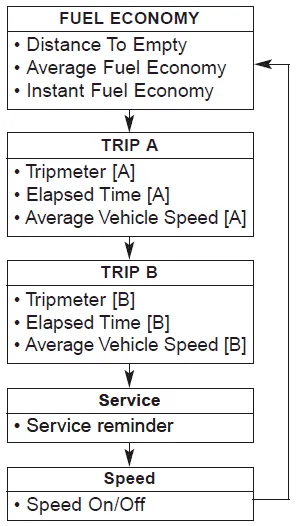

- For Type B cluster
To change the trip mode, scroll the MOVE scroll switch (
)
in the trip computer mode.
The trip computer is a microcomputer- controlled driver information system that displays information related to driving. ✽ NOTICE Some driving information stored in the trip computer (for example Average Vehicle Speed) resets if the battery is disconnected.
■ Type A ■ Type B Distance To Empty (1) • The range is the estimated distance the vehicle can be driven with the remaining fuel. - Distance range : 1 ~ 9,999 km or 1 ~ 99,999 mi.
