Kia Rio: Sunroof / Sunroof Guide

Kia Rio 2017-2023 YB Service Manual / Body (Interior and Exterior) / Sunroof / Sunroof Guide

Repair procedures

Replacement
1.

Remove the sunroof assembly.

(Refer to Sunroof - "Sunroof Assembly")

2.

Remove the sunroof sunshade.

(Refer to Sunroof - "Sunroof Sunshade")

3.

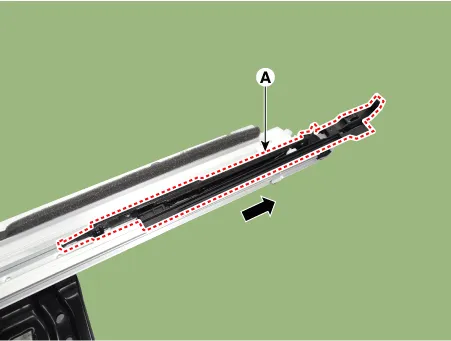

Push down the slide and remove the drip link assembly (A).
4.

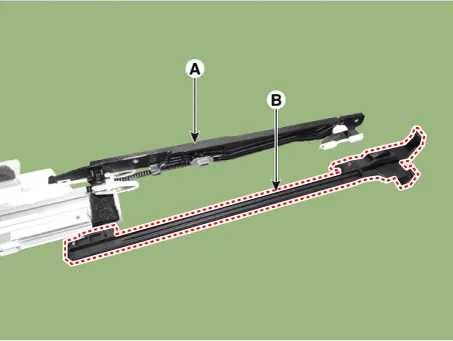

Separate the drip link (B) and guide (A).
5.

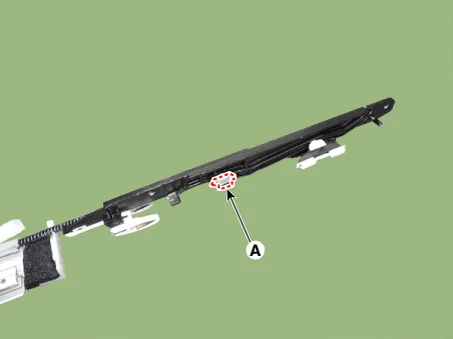

Remove the shoe (A).
6.

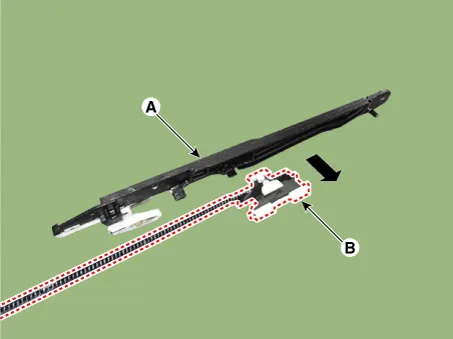

Separate the guide assembly (A) and the cable (B) by pushing them in the direction of the arrow.
7.

Install in the reverse order of removal.


•

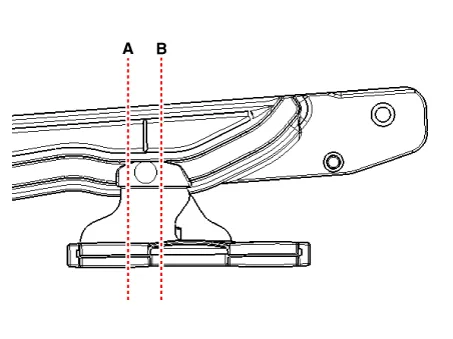

Place the position of slide between (A) and (B) as shown.

•

Make sure to initialize the motor.
