Components and components location

Component Location

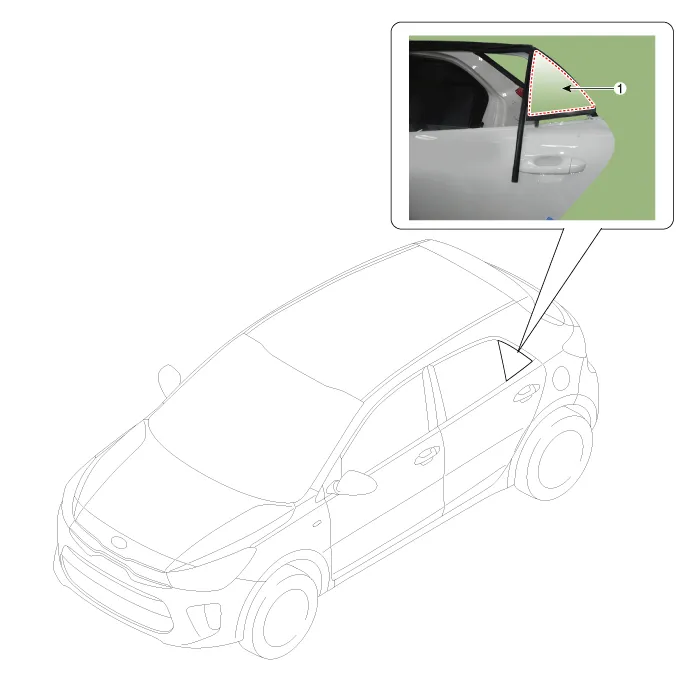

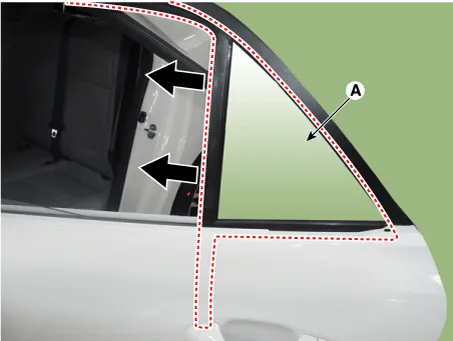

1. Quarter fixed glass

Repair procedures

Replacement

1.	Pull down rear door window glass by pressing the power window glass switch.

2.	Remove the rear door trim. (Refer to Rear Door - "Rear Door Trim")

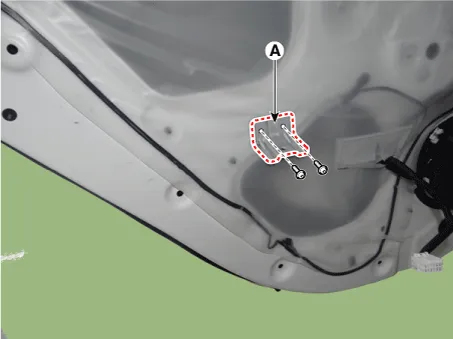

3.	Remove the door pull handle mounting support (A) after loosening the screws.

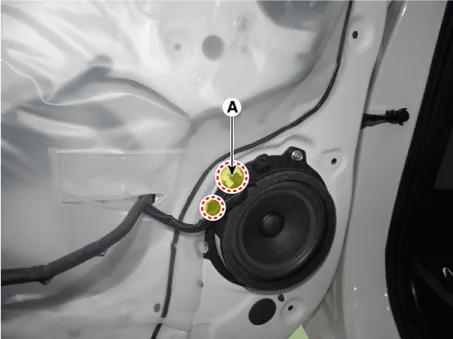

4.	Disconnect the front door speaker connector (A), and then remove the wiring mounting clips.

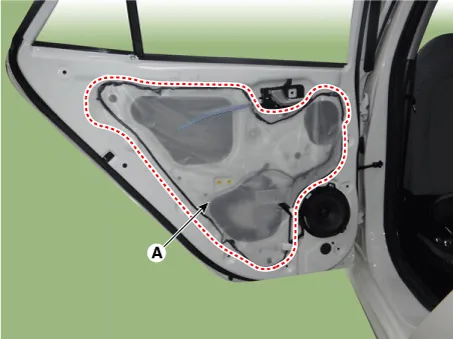

5.	Remove the front door trim seal (A).

6.	Remove the front door belt inside weather strip (A).

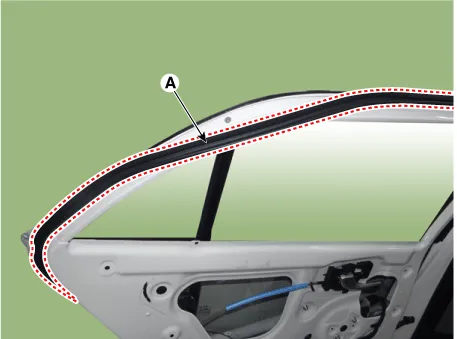

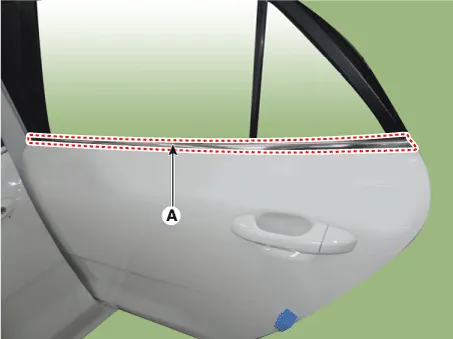

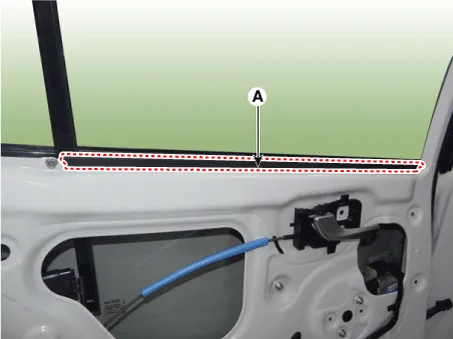

7.	Remove the front door belt outside weather strip (A).

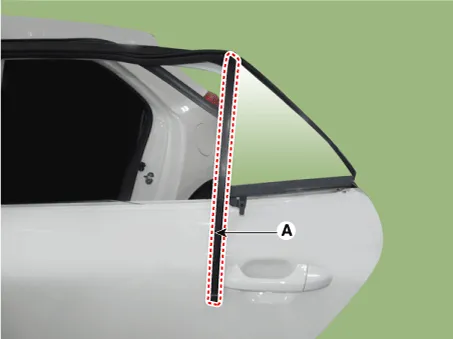

8.	Separate the door side weatherstrip (A).

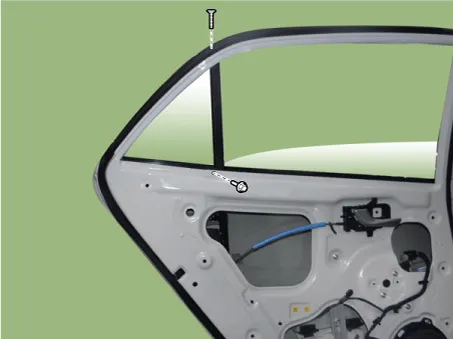

9.	Loosen the mounting screw and bolt.

10.	Remove the quarter fixed glass & molding (A).

11.	Remove the rear door molding (A).

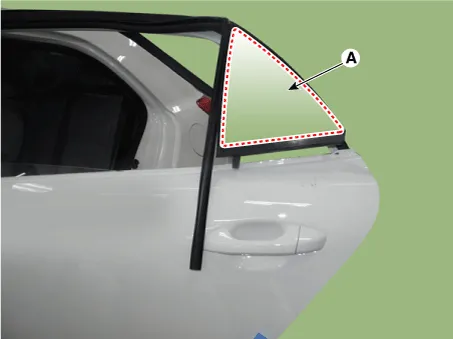

12.	Remove the quarter fixed glass (A).

13.

Install in the reverse order of removal.

•	Make sure the connector is connected properly.

•	Make sure the door locks/unlocks and opens/closes properly.

•	Replace any damaged clips.
