Kia Rio: Sunroof / Sunroof Sunshade
Repair procedures
| Replacement |
| 1. |
Remove the sunroof assembly. (Refer to Sunroof - "Sunroof Assembly") |
| 2. |

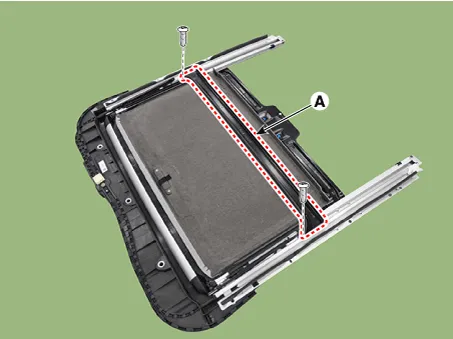

Remove the drip rail assembly (A) after loosening the mounting screws.
|
| 3. |

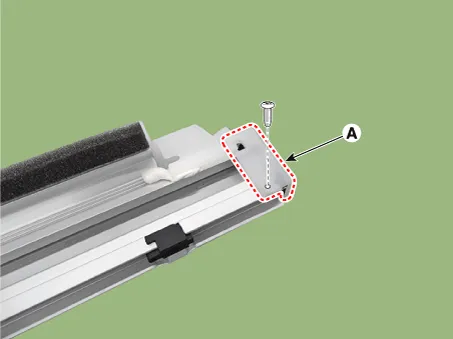

Separate the rear drip (A) after loosening the mounting screws.
|
| 4. |

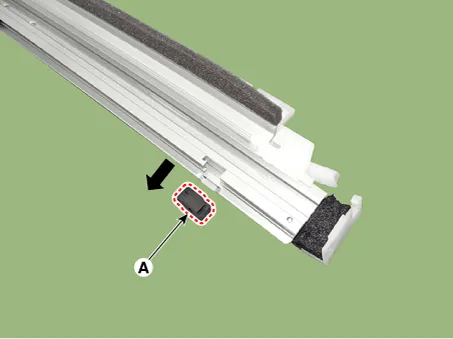

Remove the stopper (A) by pushing it in the direction of the arrow.
|
| 5. |

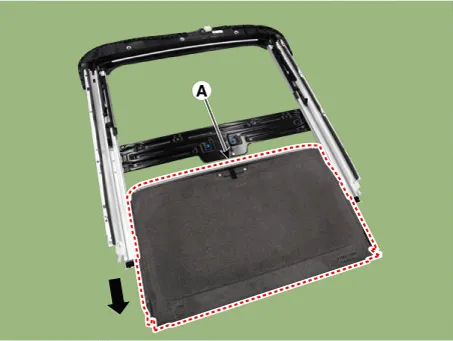

Remove the sunroof sunshade (A) by pushing it backward.
|
| 6. |
Install in the reverse order of removal.
|
Components and components location Components 1. Sunroof assembly Repair procedures Replacement • When removing with a flat-tip screwdriver or remover, wrap protective tape around the tools to prevent damage to components.
Repair procedures Replacement 1. Remove the sunroof assembly. (Refer to Sunroof - "Sunroof Assembly") 2.
