Kia Rio: Sunroof / Sunroof Deflector
Repair procedures
| Replacement |
| 1. |
Open the glass fully. |
| 2. |

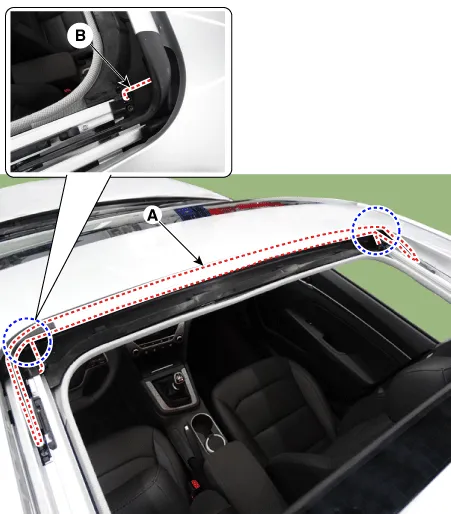

Remove the mounting pins (B), and then remove the deflector (A).
|
| 3. |
Install in the reverse order of removal. |
Components and components location Components 1. Sunroof glass Repair procedures Replacement Put on gloves to protect your hands.
Components and components location Components 1. Sunroof assembly Repair procedures Replacement • When removing with a flat-tip screwdriver or remover, wrap protective tape around the tools to prevent damage to components.
