Kia Rio: Crash Pad / Steering Column Shroud Panel

Kia Rio 2017-2023 YB Service Manual / Body (Interior and Exterior) / Crash Pad / Steering Column Shroud Panel

Components and components location

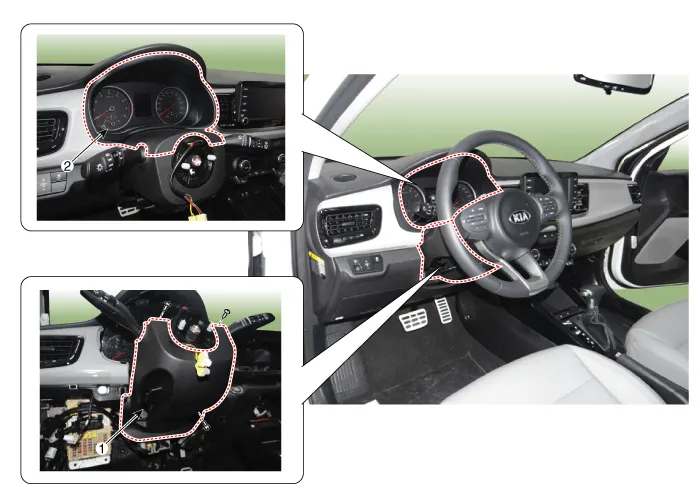

Component Location

1. Steering column shroud lower panel

2. Steering column shroud upper panel

Repair procedures

Replacement

[Steering column shroud upper panel]

Put on gloves to protect your hands.

•	Use a plastic panel removal tool to remove interior trim pieces without marring the surface.

•	Be careful not to bend or scratch the trim and panels.

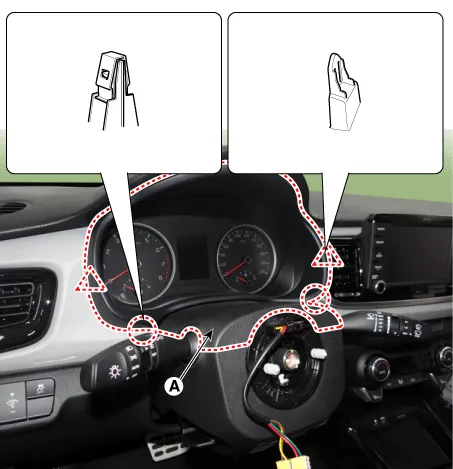

1.	Remove the steering column shroud upper panel (A) by using a remover.

Install in the reverse order of removal.

Replace any damaged clips.

[Steering column shroud lower panel]

1.	Remove the Steering column shroud upper panel.

2.	Remove the crash pad lower panel. (Refer to Crash Pad - "Crash Pad Lower Panel")

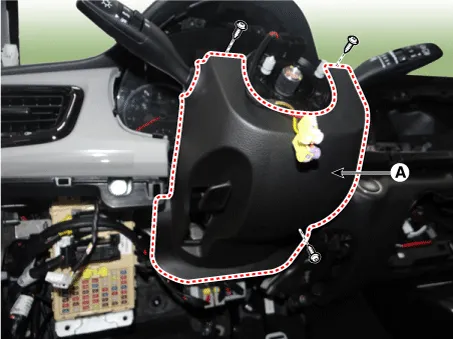

3.	Remove the steering column shroud lower panel (A) after loosening the mounting screws.

Install in the reverse order of removal.

Replace any damaged clips.
