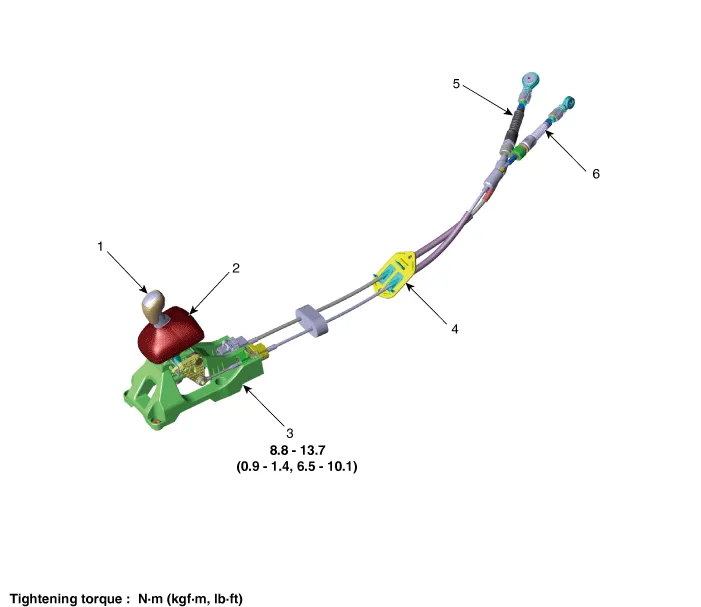

| Components |

|
1. Knob 2. boots 3. Shift lever assembly |
4. Retainer 5. Shift cable 6. Select cable |
| Removal |
| 1. |
Remove the knob by pulling it in the direction of upward after removing the boots from the console upper cover. |
| 2. |
Remove the floor console assembly. (Refer to Body - "Floor Console Assembly") |
| 3. |

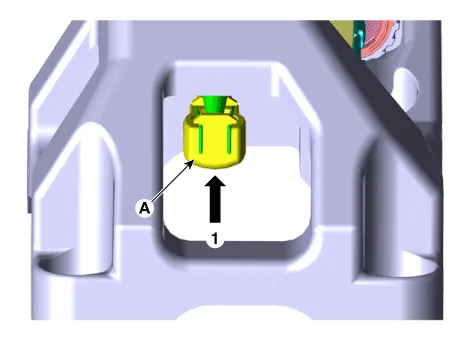

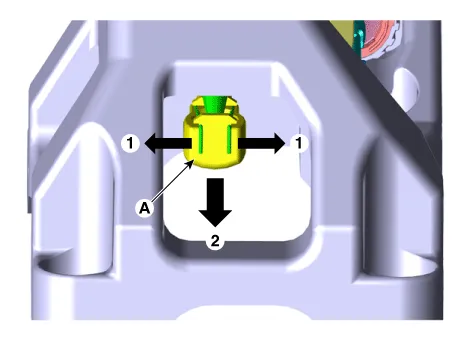

Remove the snap pin (A) and then remove the select cable from the shift lever pin.
|
| 4. |

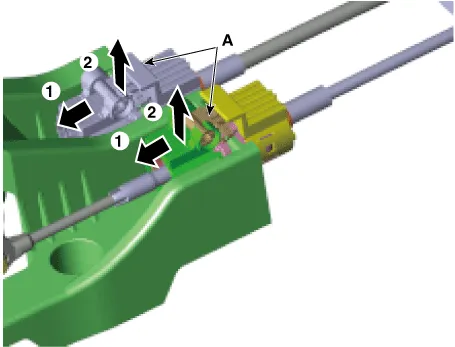

Remove the cable sockets (A) from the shift lever.
|
| 5. |

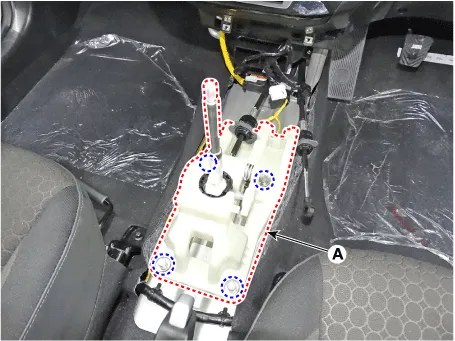

Loosen the shift lever mounting bolts (A).
|
| 6. |

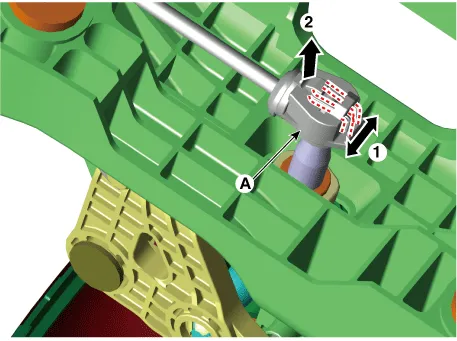

Remove the shift cable (A) from the shift lever. [A Type]
[B Type]
|
| Installation |
| 1. |
Install in the reverse order of removal.
|
| Inspection |
| 1. |
Check for proper operation of control shaft lever when operated (1st, 2nd, 3rd, 4th, 5th, 6th, R gear). |
| 2. |

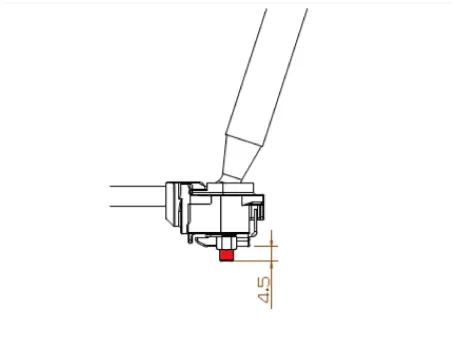

When the shift lever is engaged to "R", check that the skirt is in proper position. |
| 3. |
If the gear feels stiff, adjust the control cable length again. (Refer to Control Cable - "Installation") |
