Kia Rio: Manual Transaxle Control System / Control Shaft Complete

Kia Rio 2017-2023 YB Service Manual / Manual Transaxle System / Manual Transaxle Control System / Control Shaft Complete

Components and components location

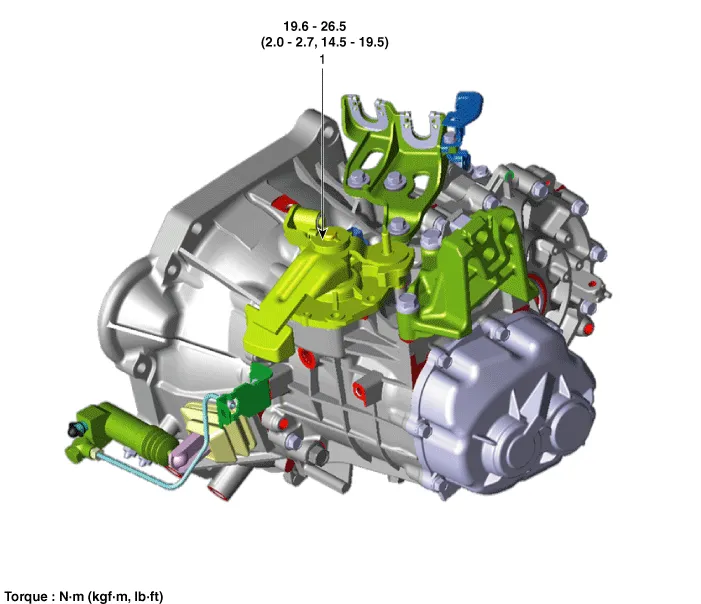

Components Location

1. Control shaft complete

Repair procedures

Removal

1.	Shift the gear to "neutral".

2.	Remove the air cleaner assembly. (Refer to Engine Mechanical System - "Air Cleaner")

3.	Remove the battery and battery tray. (Refer to Engine Electrical System - "Battery")

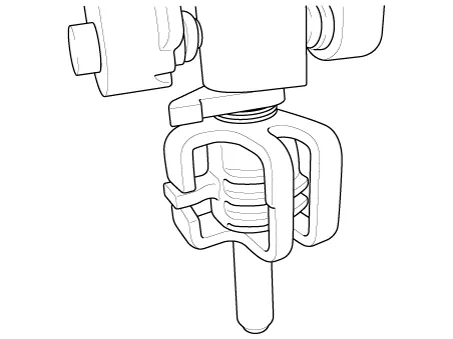

4.	Remove the control cable from the control shaft after remove the pins (A).

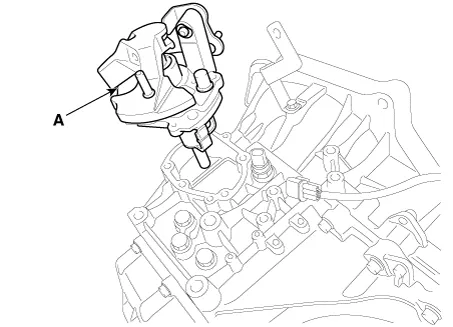

Remove the control shaft complete (A).

Tightening torque :

19.6 - 26.5 N.m (2.0 - 2.7 kgf.m,14.5 - 19.5 lb-ft)

Installation

1.	Install in the reverse order of removal.

•	Install the control shaft complete after setting the neutral state.

•

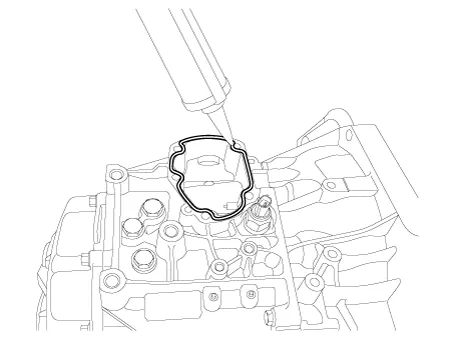

Apply the sealant to the contact surface of transaxle and control shaft.

Specified sealant : Anaerobic adhesive for flange
