Kia Rio: Clutch System / Regulator

Components and components location

Componets

[Gasoline 1.0 T-GDI, Diesel 1.4]

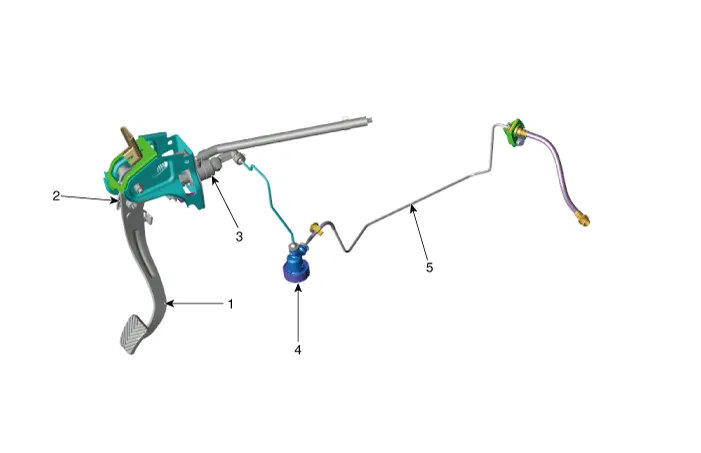

1.. Clutch pedal assembly
2. Ignition lock and clutch switch
3. Master cylinder
4. Clutch regulator
5. Clutch tube

Repair procedures

Removal

[Gasoline 1.0 T-GDI, Diesel 1.4]

1.

Turn ignition switch OFF and disconnect the negative (-) battery cable

2.

Remove the air cleaner.

D 1.4 U2 TCI (Refer to Engine Mechanical System - " Air Cleaner")

G 1.0 T-GDI (Refer to Engine Mechanical System - " Air Cleaner")

3.

Remove the battery and battery tray.

D 1.4 U2 TCI (Refer to Engine Electrical System - "Battery")

G 1.0 T-GDI (Refer to Engine Electrical System - "Battery")

4.

Remove the fuel filter. (Diesel vehicle only)

D 1.4 U2 TCI (Refer to Engine Control / Fuel System - "Fuel Filter")

5.

Remove the ECM.

D 1.4 U2 TCI (Refer to Engine Control / Fuel System - Engine Control Module (ECM)")

G 1.0 T-GDI (Refer to Engine Control / Fuel System - Engine Control Module (ECM)")

6.

Remove the snap pin and flare nut (A) and then remove the regulator (B).

Installation
1.

Install in the reverse order of removal.

2.

After be equipped, perform bleeding air procedure in clutch release cylinder after pouring the brake fluid.

(Refer to Cltuch Release Cylinder - "Adjustment")
