Kia Rio: Immobilizer System / Antenna Coil
Repair procedures
| Removal |
| 1. |
Disconnect the negative (-) battery terminal. |
| 2. |
Remove the crash pad lower panel. (Refer to Body - "Crash Pad Lower Panel") |
| 3. |
Remove the steering column upper and lower shroud panel. (Refer to Body - "Steering Column Shroud Panel") |
| 4. |

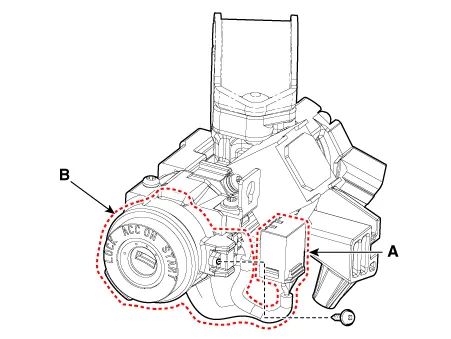

Disconnect the 6P connector (A) of the coil antenna and then remove the antenna coil (B) after loosening a screw.
|
| Installation |
| 1. |
Install the coil antenna and connect the 6P connector. |
| 2. |
Install the steering column upper and lower shroud panel. |
| 3. |
Install the crash pad lower panel. |
| 4. |
Connect the negative (-) battery terminal. |
