Kia Rio: Interior Trim / Rear Pillar Trim

Kia Rio 2017-2023 YB Service Manual / Body (Interior and Exterior) / Interior Trim / Rear Pillar Trim

Components and components location

Component Location

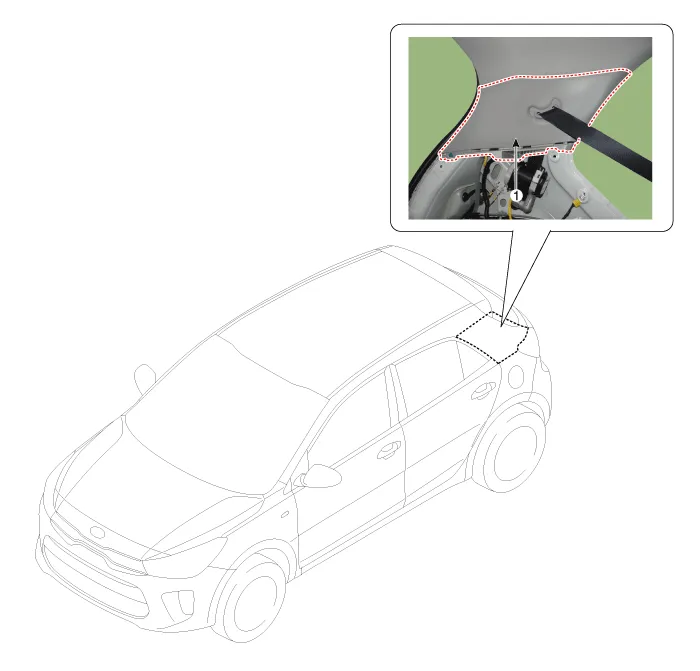

[5 Door]

1. Rear pillar trim

[4 Door]

1. Rear pillar trim

Repair procedures

Replacement
[5 Door]


Put on gloves to protect your hands.


•

Use a plastic panel removal tool to remove interior trim pieces without marring the surface.
•

Take care not to bend or scratch the trim and panels.

1.

Remove the luggage side trim.

(Refer to Interior Trim - "Luggage Side Trim")

2.

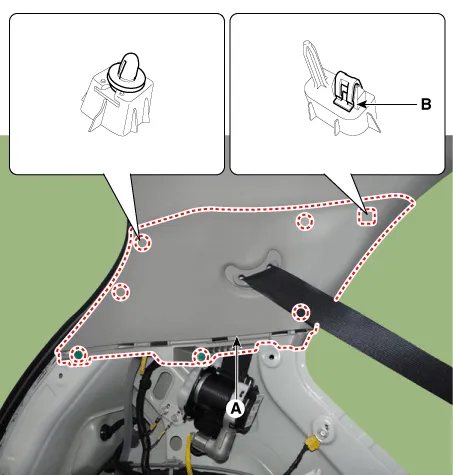

Remove the rear pillar trim (A).
3.

Install in the reverse order of removal.


•

Replace any damaged clips.

•

Once the trim has been removed replace the clip (B) with a new one.
[4 Door]


Put on gloves to protect your hands.


•

Use a plastic panel removal tool to remove interior trim pieces without marring the surface.
•

Take care not to bend or scratch the trim and panels.

1.

Fold the rear seat back assembly.
2.

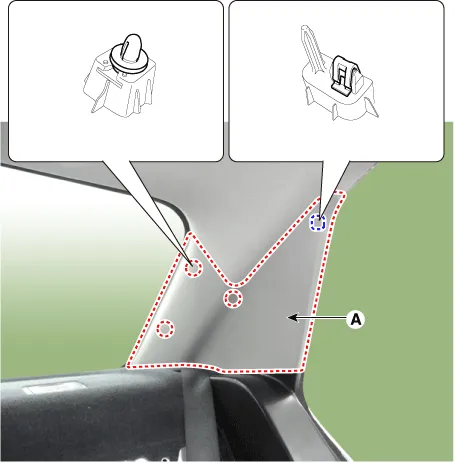

Remove the rear pillar trim (A) by using a remover.
3.

Install in the reverse order of removal.


•

Replace any damaged clips.

•

Once the trim has been removed replace the clip (B) with a new one.
