Kia Rio: Interior Trim / Rear Wheel House Trim

Kia Rio 2017-2023 YB Service Manual / Body (Interior and Exterior) / Interior Trim / Rear Wheel House Trim

Components and components location

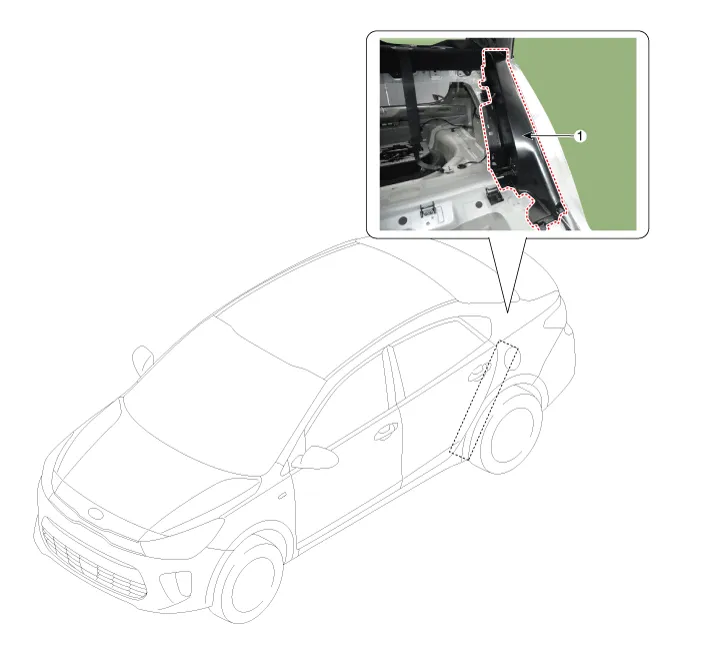

Component Location

1. Rear wheel house trim

Repair procedures

Replacement

Put on gloves to protect your hands.

•	Use a plastic panel removal tool to remove interior trim pieces without marring the surface.

•	Take care not to bend or scratch the trim and panels.

1.	Remove the rear seat assembly. (Refer to Rear Seat - "Rear Seat Assembly")

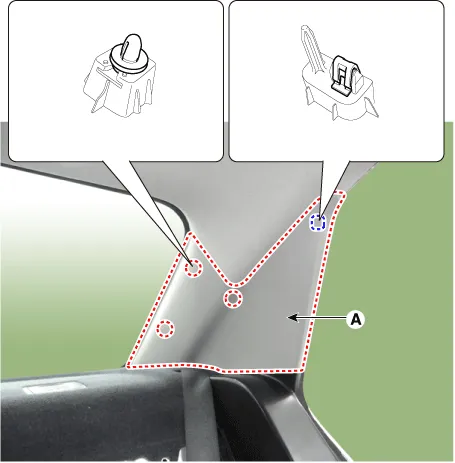

2.	Remove the rear pillar trim (A) by using a remover.

3.	Remove the rear door scuff trim.

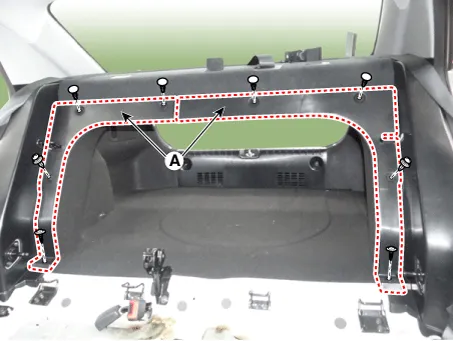

4.	Remove the rear partition trim (A) after looseing the mountin screw.

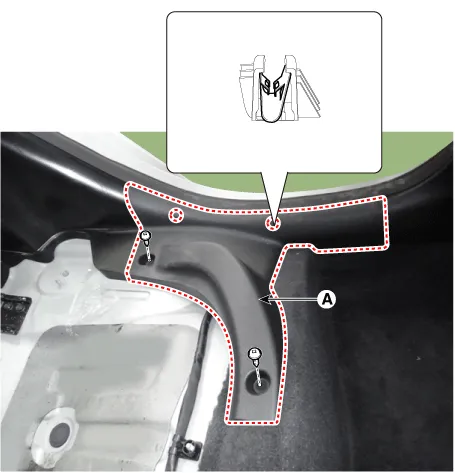

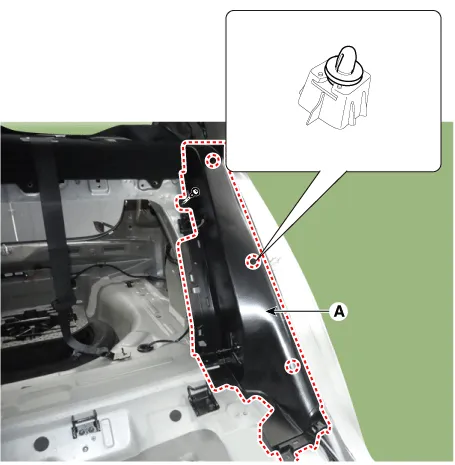

5.	Remove the rear wheel house trim (A) after looseing the mountin screw.

Install in the reverse order of removal.

•	Make sure that the connector is connected properly.

•	Replace any damage clips.
