Components and components location

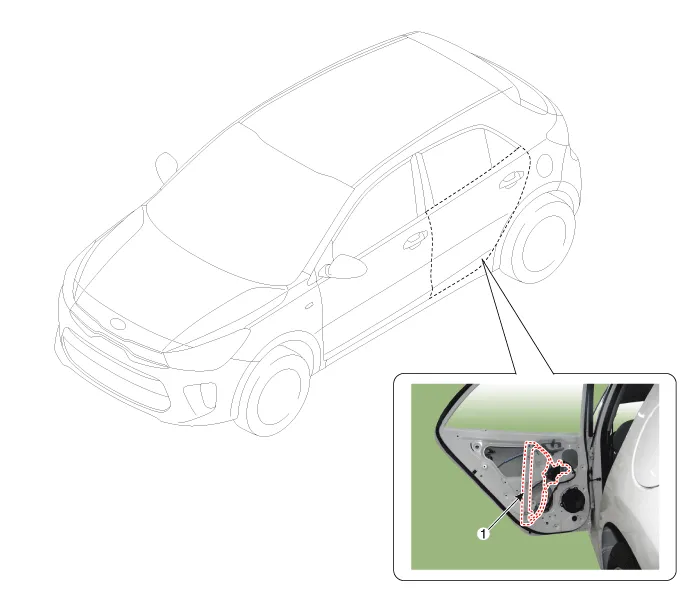

Component Location

1. Rear door trim

Repair procedures

Replacement

Put on gloves to protect your hands.

•	Use a plastic panel removal tool to remove interior trim pieces without marring the surface.

•	Be careful not to bend or scratch the trim and panels.

1.	Remove the rear door window glass. (Refer to Rear Door - "Rear Door Window Glass")

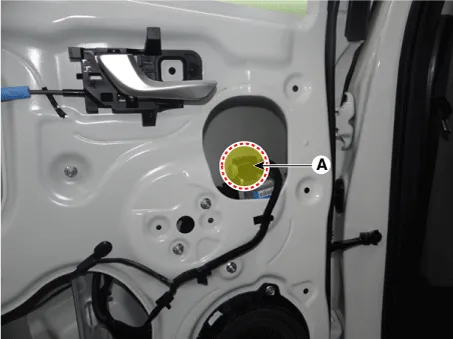

2.	Disconnect the rear door power window motor connector (A).

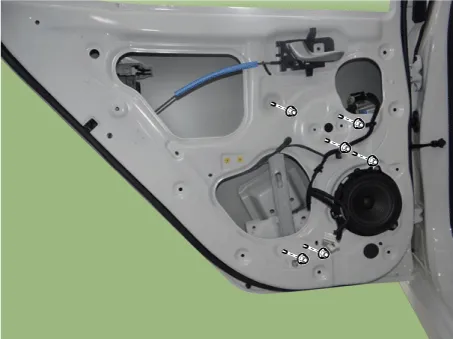

Loosen the rear door power window regulator mounting nuts.

Tightening torque :

3.9 - 5.9 N.m (0.4 - 0.6 kgf.m, 2.9 - 4.3 lb-ft)

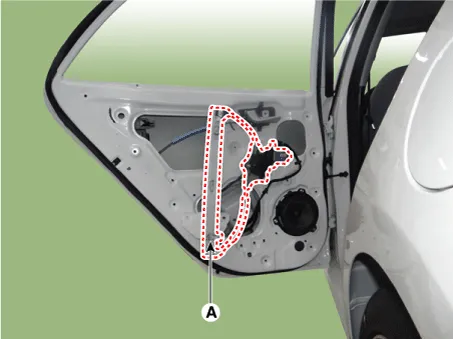

4.	Remove the rear door power window regulator (A).

Install in the reverse order of removal.

•	Check that glass operation is normal.

•	Check the damage glass channel, and replace if necessary.

•	Adjust glass if necessary.
