Kia Rio: Rear Door / Rear Door Window Glass

Kia Rio 2017-2023 YB Service Manual / Body (Interior and Exterior) / Rear Door / Rear Door Window Glass

Components and components location

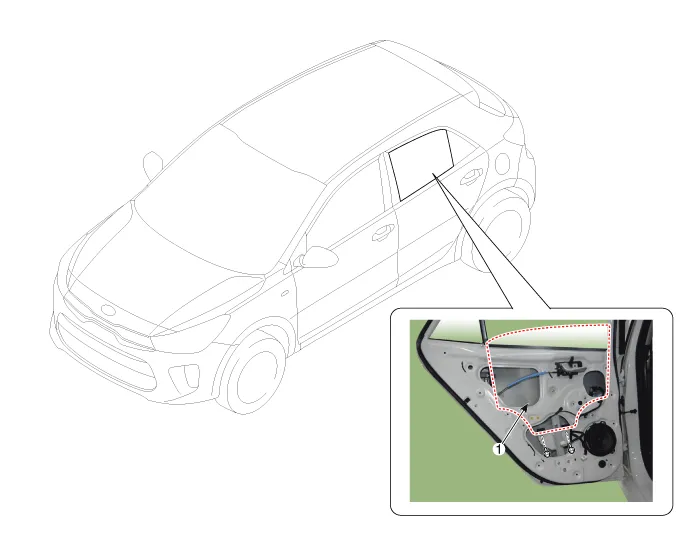

Component Location

1. Rear door window glass

Repair procedures

Replacement

Put on gloves to protect your hands.

•	Use a plastic panel removal tool to remove interior trim pieces without marring the surface.

•	Be careful not to bend or scratch the trim and panels.

1.	Remove the rear door trim. (Refer to Rear Door - "Rear Door Trim")

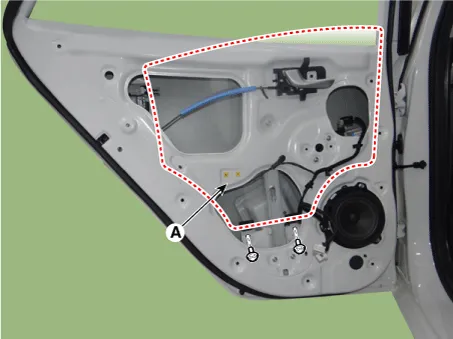

2.	Remove the door pull handle mounting support (A) after loosening the screws.

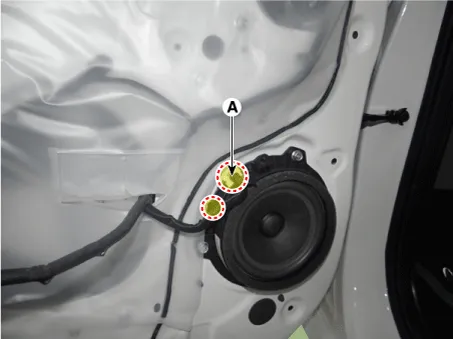

3.	Disconnect the front door speaker connector (A), and then remove the wiring mounting clips.

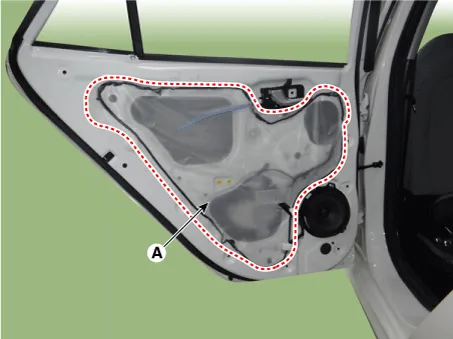

4.	Remove the front door trim seal (A).

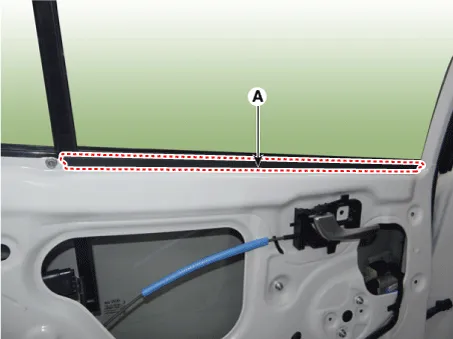

5.	Remove the front door belt inside weather strip (A).

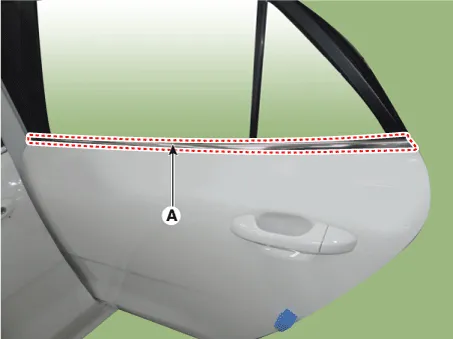

6.	Remove the front door belt outside weather strip (A).

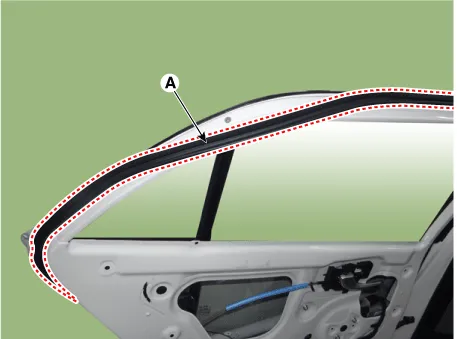

7.	Separate the door side weatherstrip (A).

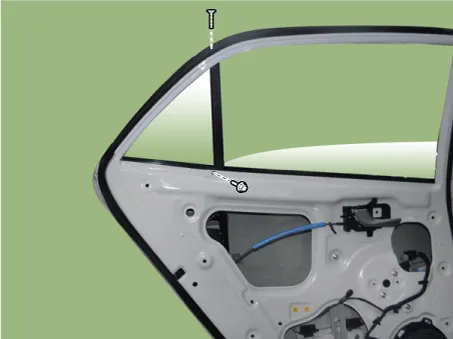

8.	Loosen the mounting screw and nut.

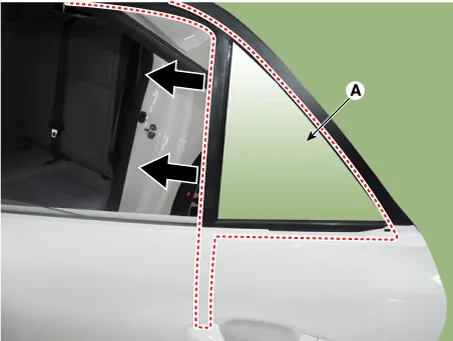

9.	Remove the quarter fixed glass & molding (A).

10.

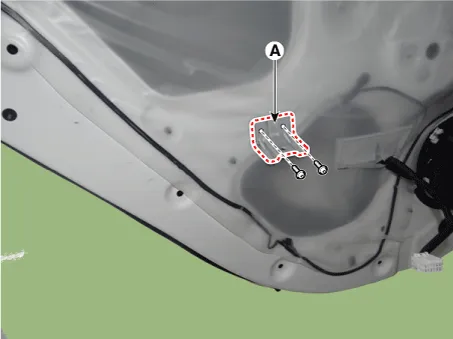

Remove the rear door window glass (A) after loosening the mounting bolts.

Be careful not to drop the glass and/or scratch the glass surface.

•	Use the door switch to align the mounting bolt in the door.

•	If the window motor cannot be operated, remove the motor and align the hole by hand.

11.

Install in the reverse order of removal.

•	Check that glass operation is normal.

•	Check the damage glass channel, and replace if necessary.

•	Adjust glass if necessary.
