Kia Rio: Rear Door / Rear Door Latch

Components and components location

Component Location

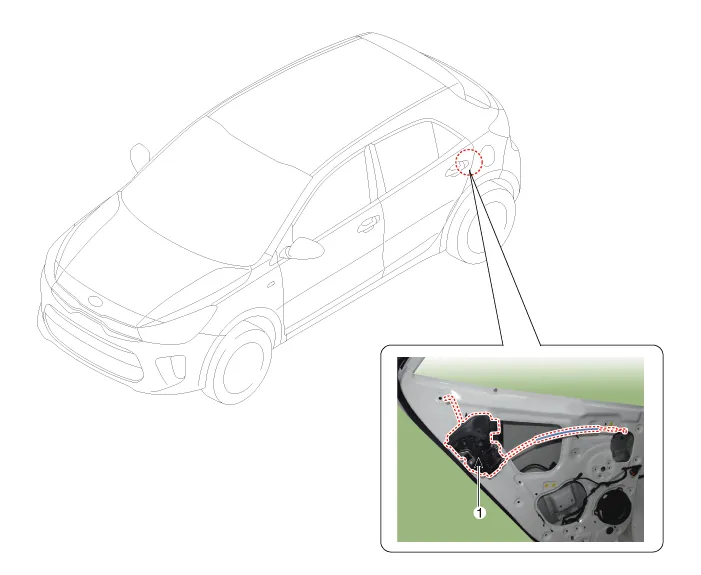

1. Rear door latch


Repair procedures

Replacement


Put on gloves to protect your hands.



Use a plastic panel removal tool to remove interior trim pieces without marring the surface.

Be careful not to bend or scratch the trim and panels.

1.

Remove the rear door inside handle.

(Refer to Rear Door - "Rear Door Inside Handle")

2.

Remove the rear door window glass.

(Refer to Rear Door - "Rear Door Window Glass")

3.

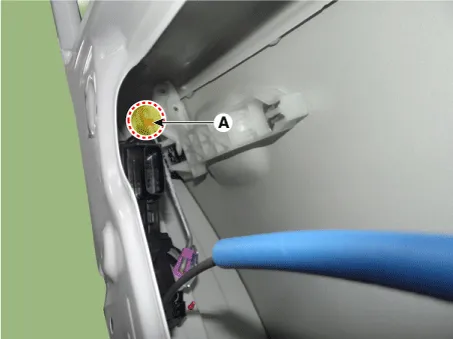

Disconnect the rear door latch connector (A).

4.

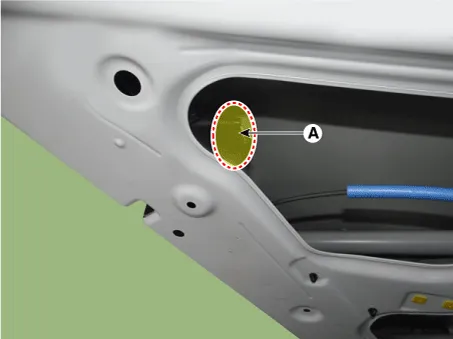

Loosen the rear door latch & outside handle base mounting rod (A).

5.

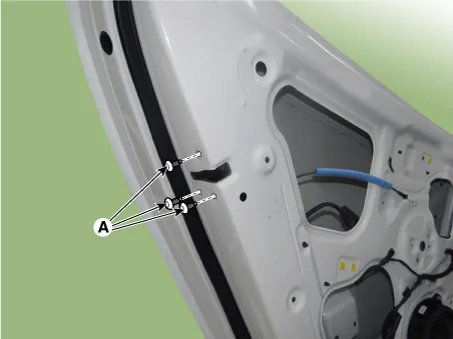

Loosen the rear door latchmounting screws (A).

6.

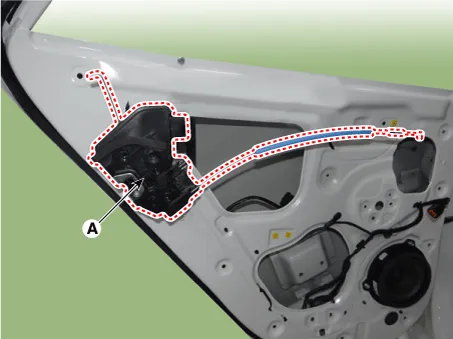

Remove the rear door latch (A).

7.

Install in the reverse order of removal.



Check that glass operation is normal.

Check the damage glass channel, and replace if necessary.

Adjust glass if necessary.
