Kia Rio: Rear Door / Rear Door Belt Outside Weatherstrip
Repair procedures
| Replacement |
| 1. |
Pull down the rear door window glass to the lowest level by pressing the power window glass switch. |
| 2. |

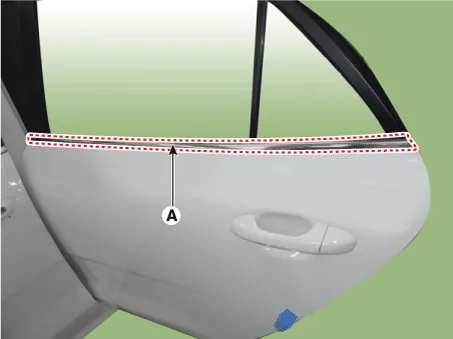

Remove the rear door belt outside weatherstrip (A) after loosening the mounting screw.
|
| 3. |
Install in the reverse order of removal.
|
Components and components location Component Location 1. Rear door latch Repair procedures Replacement Put on gloves to protect your hands.
Repair procedures Replacement 1. Remove the rear door trim. (Refer to Rear Door - "Rear Door Trim") 2.
