Kia Rio: Rear Door / Rear Door Belt Inside Weatherstrip

Repair procedures

Replacement
1.

Remove the rear door trim.

(Refer to Rear Door - "Rear Door Trim")

2.

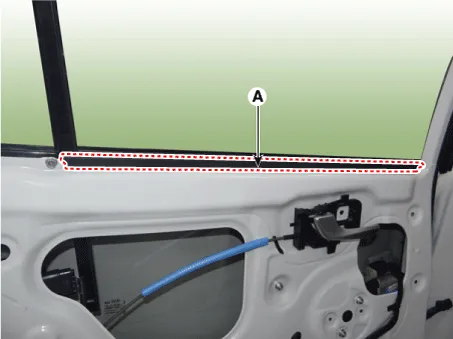

Remove the rear door belt outside weatherstrip (A) after loosening the mounting screw.

3.

Install in the reverse order of removal.



Replace any damaged clips.
