Kia Rio: Lubrication System / Oil Level Gauge & Pipe

Kia Rio 2017-2023 YB Service Manual / Engine Mechanical System / Lubrication System / Oil Level Gauge & Pipe

Repair procedures

Removal and Installation
1.

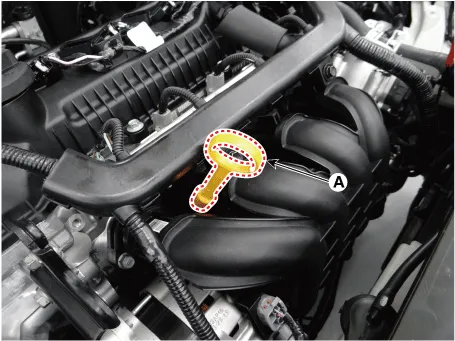

Remove the oil level gauge (A).
2.

Remove the intake manifold.

(Refer to Intake And Exhaust System - "Intake Manifold")

3.

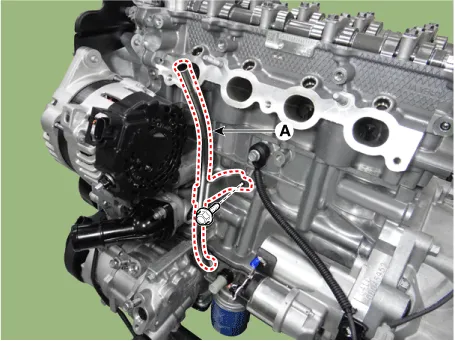

Remove the oil level pipe (A).

Tightening torque:

9.8 - 11.8 N·m (1.0 - 1.2 kgf·m, 7.2 - 8.7 lb·ft)

4.

Install in the reverse order of removal.



Apply engine oil on the o-ring of the pipe before assembly.
