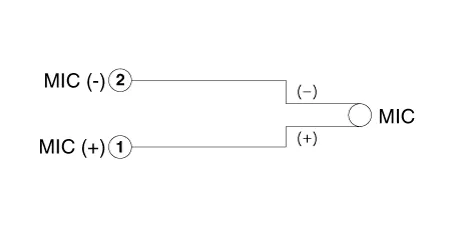

Kia Rio: AVN System / Mic
Repair procedures
| Inspection |
| 1. |
Disconnector the negative (-) battery terminal. |
| 2. |
Remove the overhead console lamp. (Refer to Lighting System - "Overhead Console Lamp") |
| 3. |

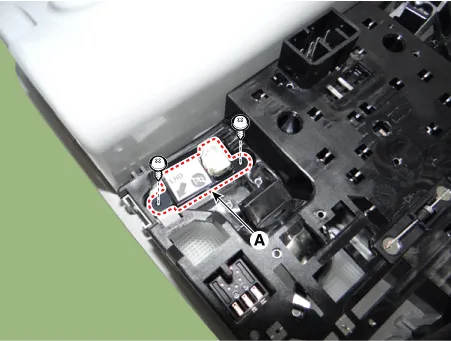

Remove the hands free mic (A) after loosening the mounting screws.
|
| 4. |

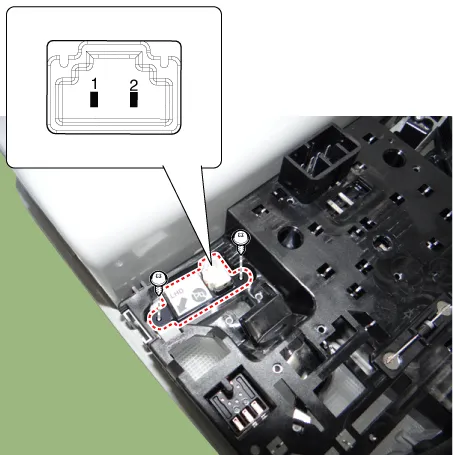

Check tshe continuity of between terminals.
|
