Kia Rio: Lighting control / Headlight position ( )

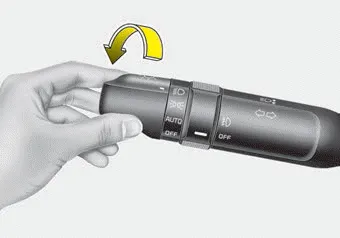

■ Type A

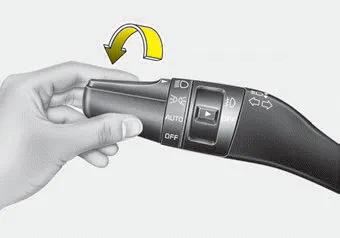

■ Type B
When the light switch is in the headlight position (4th position) the head, tail, position, license and instrument panel lights will turn ON.
The ignition switch must be in the ON position to turn on the headlights.
■ Type A ■ Type B When the light switch is in the parking light position (3rd position), the tail, position, license and instrument panel lights will turn ON.
■ Type A ■ Type B When the light switch is in the AUTO light position, the taillights and headlights will turn ON or OFF automatically depending on the amount of light outside the vehicle.
