Kia Rio: Lighting / Lighting control
■ Type A
■ Type B
The light switch has a Headlight and a Parking light position.

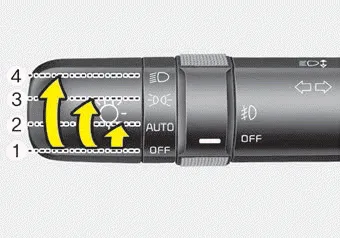

To operate the lights, turn the knob at the end of the control lever to one of the following positions:
(1) OFF position
(2) Auto light position (if equipped)
(3) Parking light position
(4) Headlight position
Headlight escort function (if equipped) The headlights (and/or taillights) will remain on for approximately 5 minutes after the ignition key is removed or turned to the ACC or LOCK position.
■ Type A ■ Type B When the light switch is in the parking light position (3rd position), the tail, position, license and instrument panel lights will turn ON.
