Kia Rio: Headlamp Leveling System / Headlamp Leveling Switch

Kia Rio 2017-2023 YB Service Manual / Body Electrical System / Headlamp Leveling System / Headlamp Leveling Switch

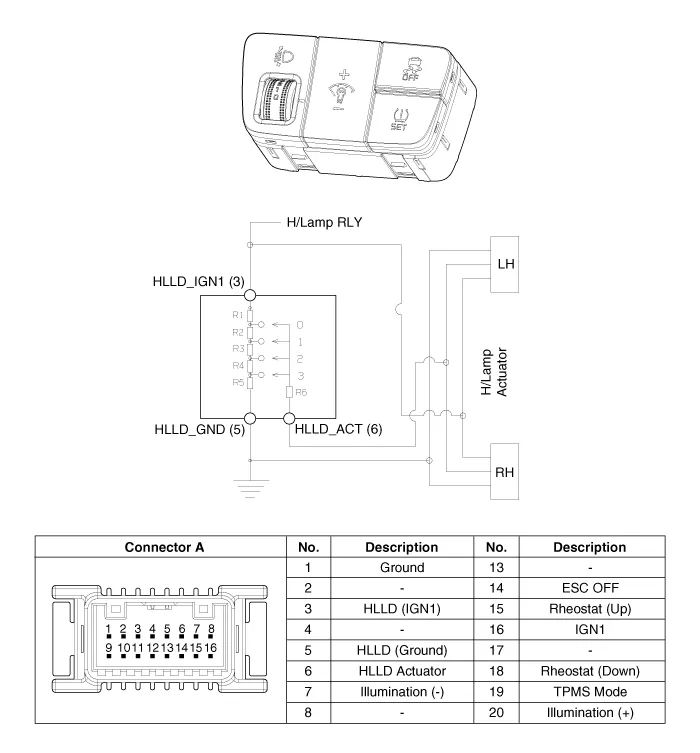

Components and components location

Components

Repair procedures

Removal

1.	Disconnect the negative (-) battery terminal.

2.	Remove the crash pad lower panel. (Refer to Body - "Crash Pad Lower Panel")

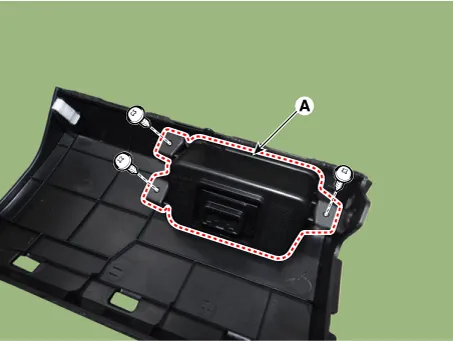

3.	Remove the crash pad side switch (A) after loosening the mounting screws.

Installation

1.	Install the crash pad side switch.

2.	Install the crash pad lower panel.

3.	Connect the negative (-) battery terminal.
