Kia Rio: Headlamp Leveling System / Headlamp Leveling Actuator
Components and components location

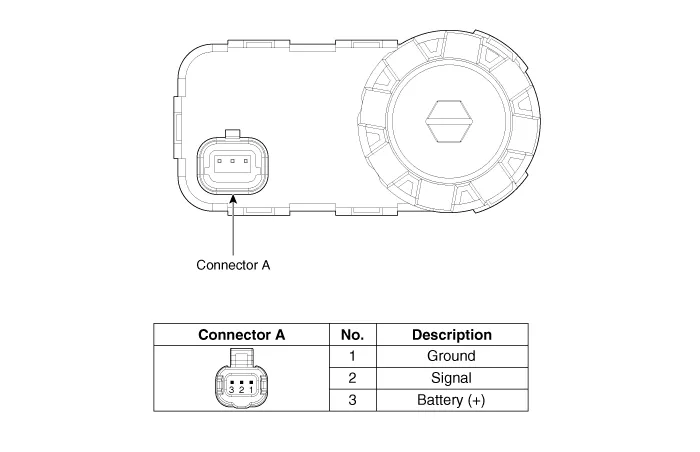

| Components |
Repair procedures
| Removal |
| 1. |
Disconnect the negative (-) battery terminal. |
| 2. |
Remove the headlamp assembly. (Refer to Lighting System - "Headlamps") |
| Installation |
| 1. |
Install the headlamp assembly. |
| 2. |
Connect the negative (-) battery terminal. |
| 3. |
Adjust the headlamp in accordance with the headlamp aiming instructions. |
Components and components location Component Location 1. Headlamp assembly (Built in leveling actuator) 2. Headlamp leveling switch
Components and components location Components Repair procedures Removal 1. Disconnect the negative (-) battery terminal.
Other information:
Kia Rio 2017-2023 YB Service Manual: Sunroof Motor
Repair procedures Inspection 1. Disconnect the negative (-) battery terminal. 2. Remove the roof trim assembly. (Refer to Body - "Roof Trim Assembly") 3. Remove the glass motor (A) after loosening the mounting screws.
Kia Rio 2017-2023 YB Service Manual: Heater & A/C Control Unit (FATC)
Components and components location Components Connector Pin Function No. Connector A Connector B 1 Battery ⁻ 2 ISG battery (+) ⁻ 3 Illumination (+) ⁻
