Kia Rio: Interior Trim / Front Pillar Trim

Kia Rio 2017-2023 YB Service Manual / Body (Interior and Exterior) / Interior Trim / Front Pillar Trim

Components and components location

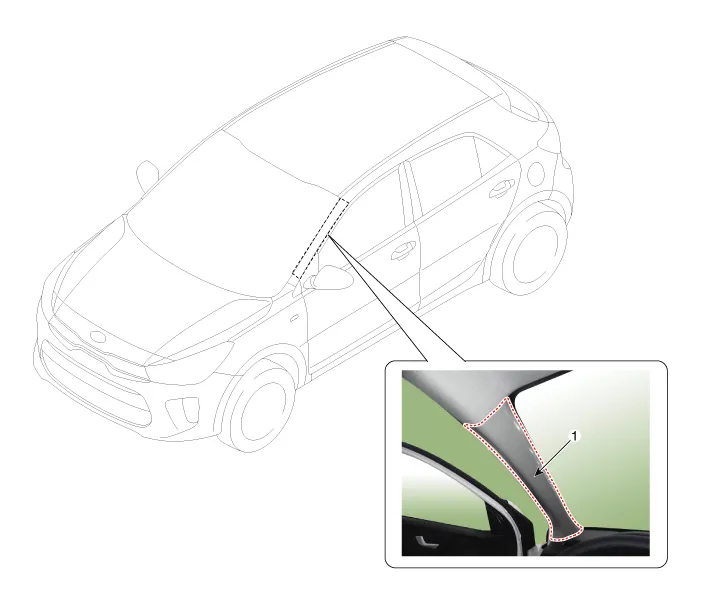

Component Location

1. Front pillar trim

Repair procedures

Replacement

Put on gloves to protect your hands.

•	Use a plastic panel removal tool to remove interior trim pieces without marring the surface.

•	Take care not to bend or scratch the trim and panels.

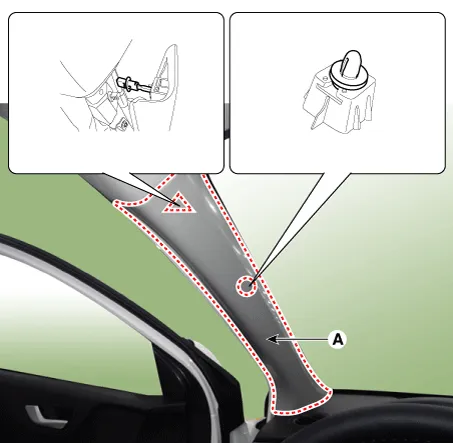

1.	Using a remover, remove the front pillar trim (A).

Install in the reverse order of removal.

Replace any damaged clips.
