Kia Rio: Body (Interior and Exterior) / Front Bumper
Components and components location

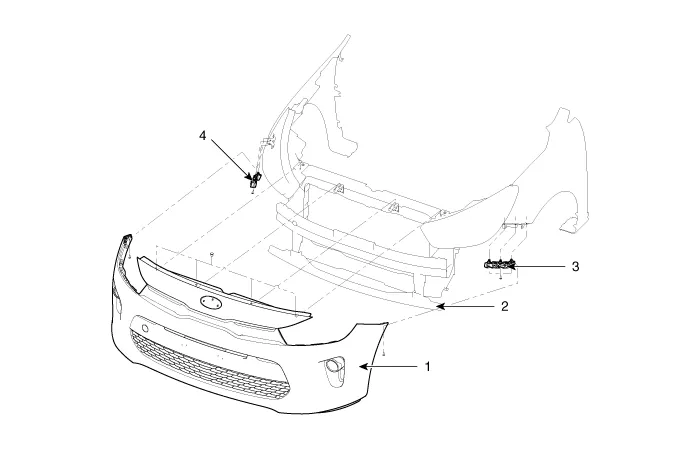

| Components |
| 1. Front bumper cover assembly
2. Front bumper lower stiffener |
3. Front bumper side bracket
[LH] 4. Front bumper side bracket [RH] |
