Kia Rio: Front Bumper / Radiator Grill

Components and components location

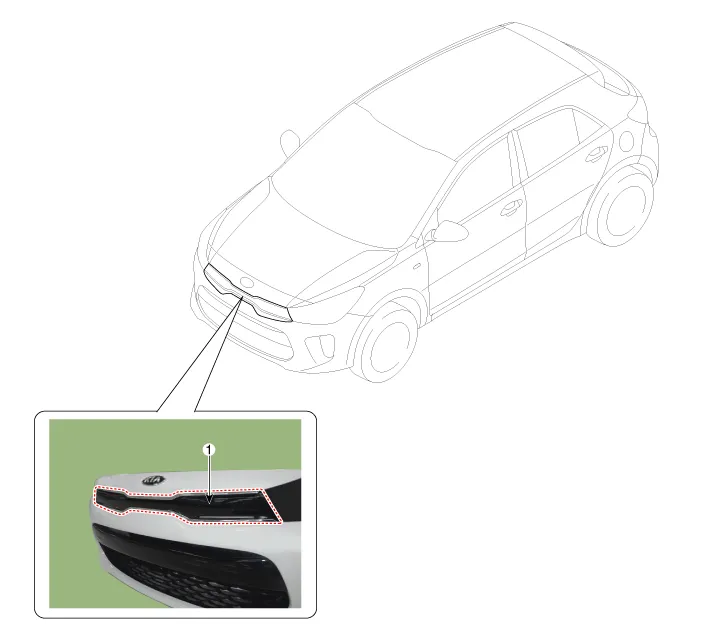

Component Location

1. Radiator grill


Repair procedures

Replacement


Put on gloves to protect your hands.



Use a plastic panel removal tool to remove interior trim pieces without marring the surface.

Take care not to bend or scratch the trim and panels.

1.

Remove the front bumper cover.

(Refer to Front Bumper - "Front Bumper Assembly")

2.

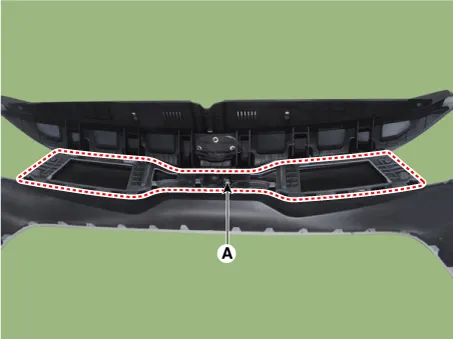

Remove the front bumper energy absorber (A).

3.

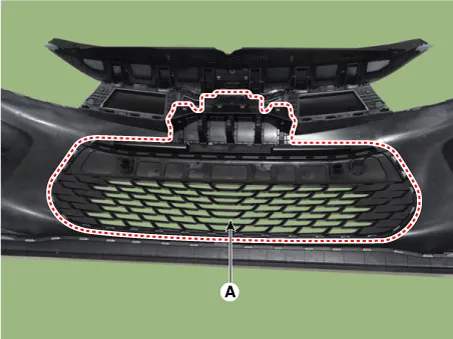

Remove the front bumper grill (A).

4.

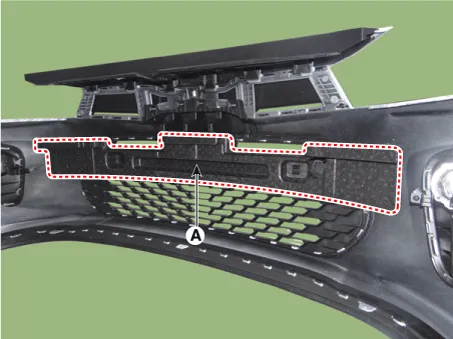

Remove the front bumper radiator grill (A).

5.

Install in the reverse order of removal.



Make sure the connector is connected properly.

Replace any damaged clips.
