Kia Rio: Body (Interior and Exterior) / Fender

Components and components location

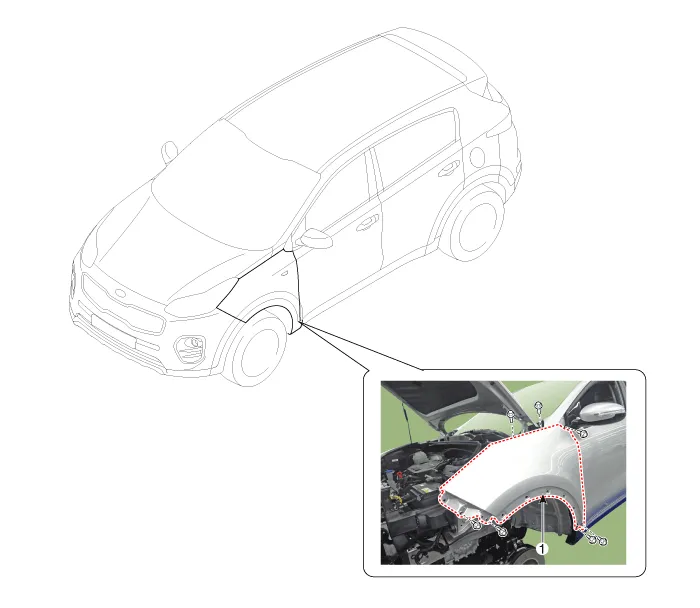

Component Location

1. Fender assembly


Repair procedures

Replacement


Be careful not to damage the fender and body.

Use a plastic panel removal tool to remove interior trim pieces without marring the surface.

1.

Remove the head lamps.

(Refer to Body Electrical System - "Headlamps")

2.

Remove the front wheel guard.

(Refer to Body Side Molding - "Front Wheel Guard")

3.

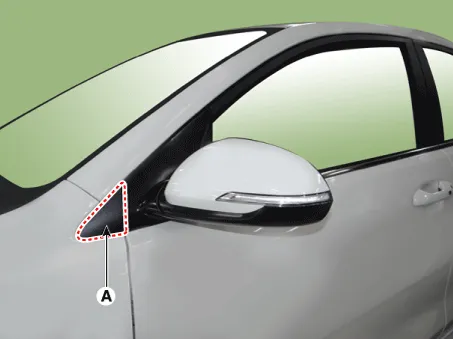

Using a remover, remove the delta garnish (A).

4.

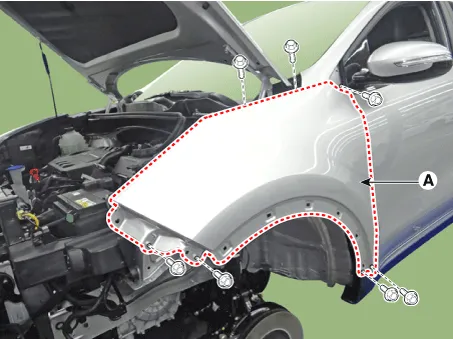

After loosening the mounting screws, bolts, and nut, remove the fender assembly (A).

5.

Install in the reverse order of removal.



Replace any damaged clips.
