Kia Rio: Engine And Transaxle Assembly / Engine Room Under Cover
Repair procedures
| Removal and Installation |
| 1. |

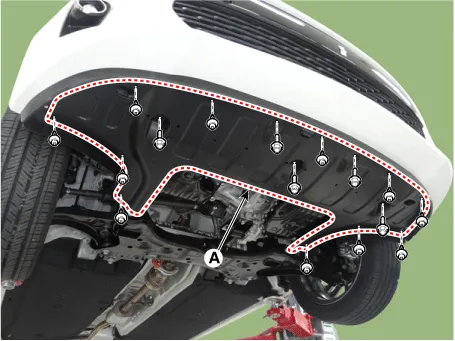

Remove the engine room under cover (A).
|
| 2. |
Install in the reverse order of removal. |
