Kia Rio: Engine And Transaxle Assembly / Engine Cover

Kia Rio 2017-2023 YB Service Manual / Engine Mechanical System / Engine And Transaxle Assembly / Engine Cover

Repair procedures

Removal and Installation
1.

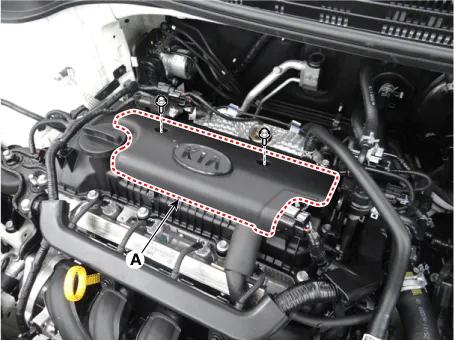

Remove the engine cover (A).

Tightening torque :

6.9 - 9.8 N·m (0.7 - 1.0 kgf·m, 5.1 - 7.2 lb·ft)

2.

Install in the reverse order of removal.
