Kia Rio: Engine And Transaxle Assembly / Engine Mounting

Kia Rio 2017-2023 YB Service Manual / Engine Mechanical System / Engine And Transaxle Assembly / Engine Mounting

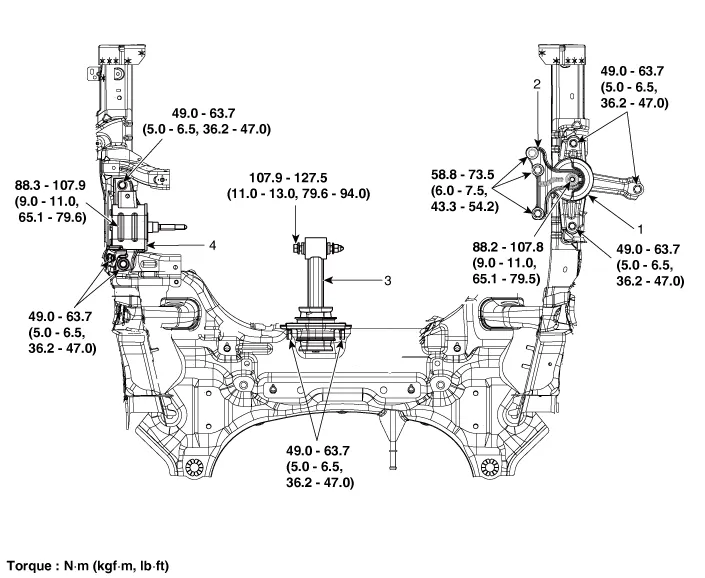

Components and components location

Components

1. Engine mounting bracket
2. Engine mounting support bracket
3. Roll rod bracket
4. Transaxle mounting bracket

Repair procedures

Removal and Installation

Engine Mounting Bracket

1.

Remove the engine room under cover.

(Refer to Engine and Transaxle Assembly - "Engine Room Under Cover")

2.

Install the jack to the edge of upper oil pan to support the engine.



Insert the rubber block between jack and oil pan.

3.

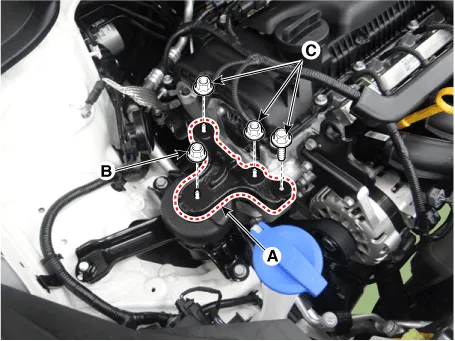

Remove the engine mounting support bracket (A).

Tightening torque

Nut (B) :

88.2 - 107.8 N·m (9.0 - 11.0 kgf·m, 65.1 - 79.5 lb·ft)

Bolt and nuts (C) :

58.8 - 73.5 N·m (6.0 - 7.5 kgf·m, 43.3 - 54.2 lb·ft)

4.

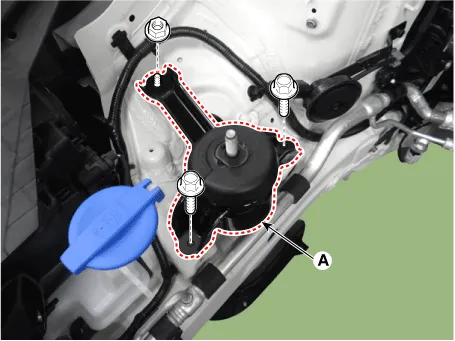

Remove the engine mounting bracket (A).

Tightening torque :

49.0 - 63.7 N·m (5.0 - 6.5 kgf·m, 36.2 - 47.0 lb·ft)

5.

Install in the reverse order of removal.

Roll Rod Bracket

1.

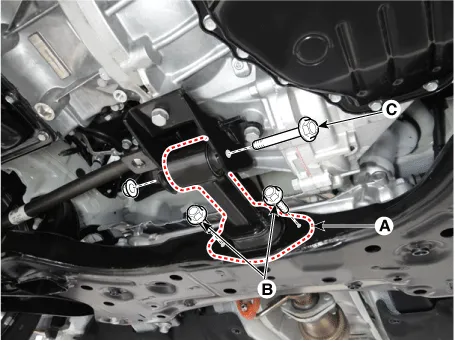

Remove the roll rod bracket (A).

Tightening torque

Bolt (B) :

49.0 - 63.7 N·m (5.0 - 6.5 kgf·m, 36.2 - 47.0 lb·ft)

Bolt (C) :

107.9 - 127.5 N·m (11.0 - 13.0 kgf·m, 79.6 - 94.0 lb·ft)

2.

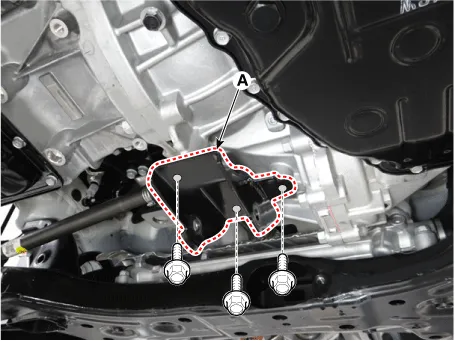

Remove the roll rod mounting support bracket (A).

Tightening torque :

49.0 - 68.6 N·m (5.0 - 7.0 kgf·m, 36.2 - 50.6 lb·ft)

3.

Install in the reverse order of removal.

Transaxle Mounting Bracket

1.

Remove the engine room under cover.

(Refer to Engine and Transaxle Assembly - "Engine Room Under Cover")

2.

Remove the air duct.

(Refer to Intake and Exhaust System - "Air Cleaner")

3.

Remove the air cleaner assembly.

(Refer to Intake and Exhaust System - "Air Cleaner")

4.

Remove the Engine Control Module (ECM).

(Refer to Engine Control/Fuel System - "Engine Control Module (ECM)")

5.

Remove the battery and tray.

(Refer to Engine Electrical System - "Battery")

6.

Install the jack to the edge of transaxle.
7.

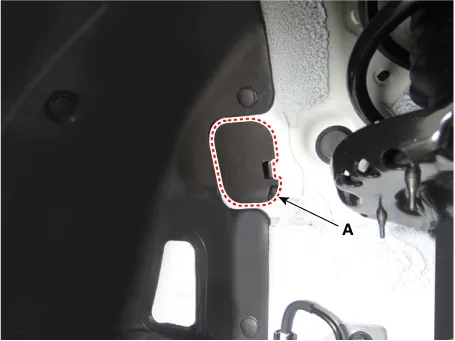

Remove the service cover (A).
8.

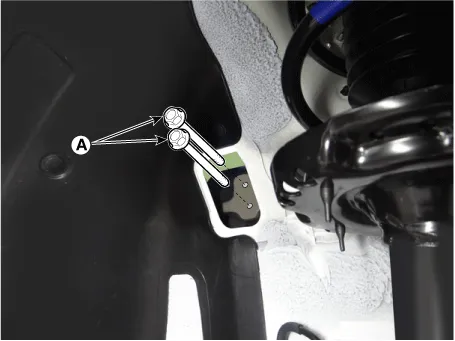

Remove the transaxle mounting bracket bolts (A).

Tightening torque :

88.2 - 107.8 N·m (9.0 - 11.0 kgf·m, 65.1 - 79.5 lb·ft)

9.

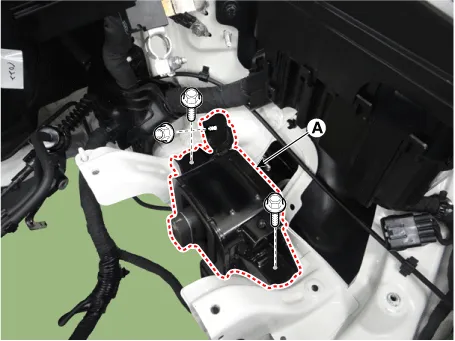

Remove the transaxle mounting bracket (A).

Tightening torque :

49.0 - 63.7 N·m (5.0 - 6.5 kgf·m, 36.2 - 47.0 lb·ft)

10.

Install in the reverse order of removal.
