Kia Rio: Trunk (for 4 door) / Emergency trunk safety release
■ Type A
■ Type B

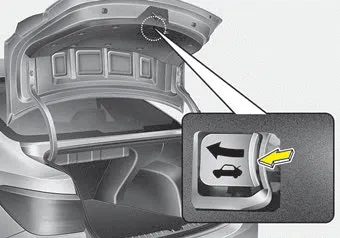

Your vehicle is equipped with an emergency trunk release lever located inside the trunk. If someone is inadvertently locked in the trunk, moving the handle in the direction of the arrow will release the trunk latch mechanism and open the trunk.
No one should be allowed to occupy the trunk at any time. The trunk is a very dangerous location in the event of a crash.
Use the release lever for emergencies only. Use extreme caution, especially while the vehicle is in motion.
To close, lower the trunk lid, then press down on it until it locks. To be sure the trunk lid is securely fastened, always check by trying to pull it up again.
On a vehicle equipped with a smart key, the trunk can be opened with no-touch activation using the Smart Trunk system. How to use the Smart Trunk The trunk can be opened with notouch activation if the conditions below are satisfied: After 15 seconds when all doors are closed and locked The smart key is in the detecting area for more than 3 seconds.
