Kia Rio: Chassis / Drive Shafts and Boots
Repair procedures
| Inspection |
| 1. |

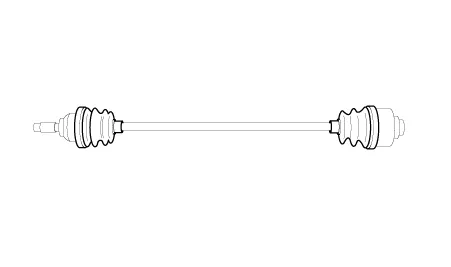

Check the drive shaft boots for loose clamps, cracks, grease leaks, kinks or damage.
|
