Kia Rio: Body (Interior and Exterior) / Cowl Top Cover
Components and components location

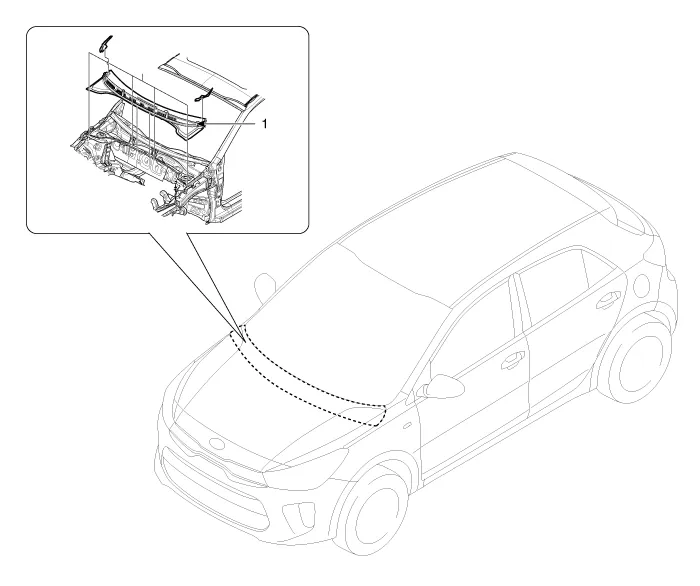

| Component Location |
| 1. Cowl top cover |
Repair procedures
| Replacement |
Put on gloves to protect your hands. |
|
| 1. |

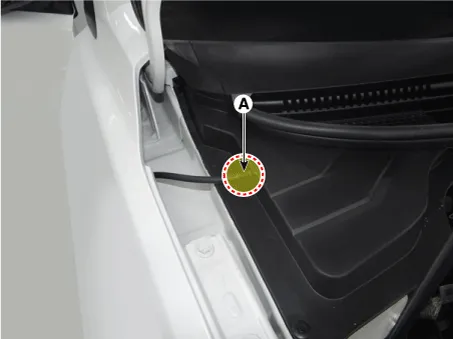

Remove the cap (A) and the nuts, and then remove the wiper arm (B).
|
| 2. |
Disconnect the nozzle hose (A).
|
| 3. |
Detach the clips, then remove the cowl top cover (A).
|
| 4. |
Install in the reverse order of removal.
|
Repair procedures Replacement Put on gloves to protect your hands. • Use a plastic panel removal tool to remove interior trim pieces without marring the surface.
Components and components location Components 1. Cowl cross bar assembly 2. Main wiring harness 3. Main crash pad assembly 4.
