Kia Rio: Body Side Molding / Rear Mud Guard
Repair procedures
| Replacement |
Put on gloves to protect your hands. |
|
| 1. |

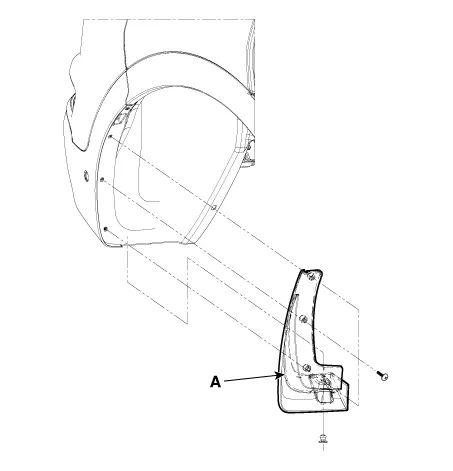

Remove the rear mud guard (A), after loosening the mounting screws.
|
| 2. |
Install in the reverse order of removal.
|
