Kia Rio: Engine Control System / Camshaft Position Sensor (CMPS)
Specifications
Camshaft Position Sensor
(CMPS)
Item
|
Specification
|
Type
|
Hall effect type
|
Output Pulse (V)
|
0 ~ 5
|
Air Gap [mm (in.)]
|
0.2 ~ 2.0 (0.0079 ~ 0.079)
|
Pin
|
3
|
Description and operation
Camshaft Position Sensor (CMPS) is a hall sensor and detects the camshaft position
by using a hall element.
It is related with Crankshaft Position Sensor (CKPS) and detects the piston position
of each cylinder which the CKPS can't detect.
The CMPS is installed on engine head cover and uses a target wheel installed
on the camshaft. This sensor has a hall-effect IC which output voltage changes when
magnetic field is made on the IC with current flow.

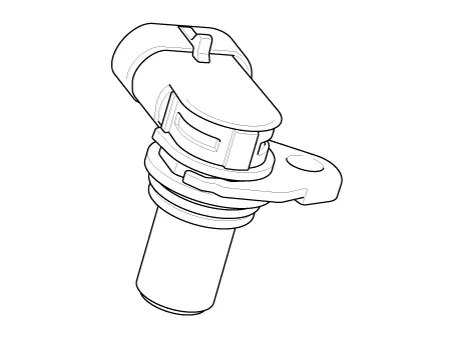

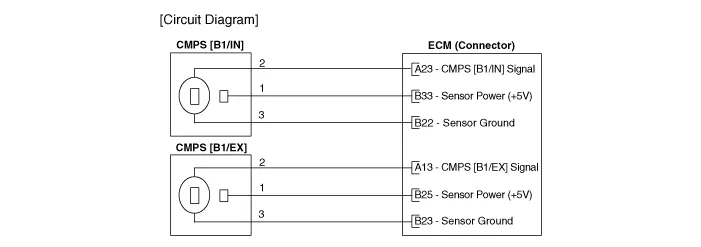

Schematic diagrams
Repair procedures
| 1. |

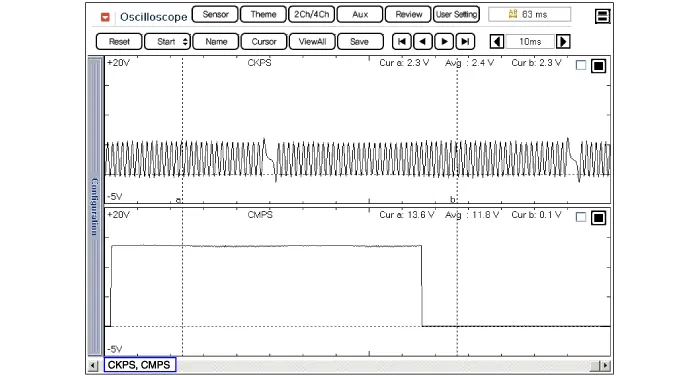

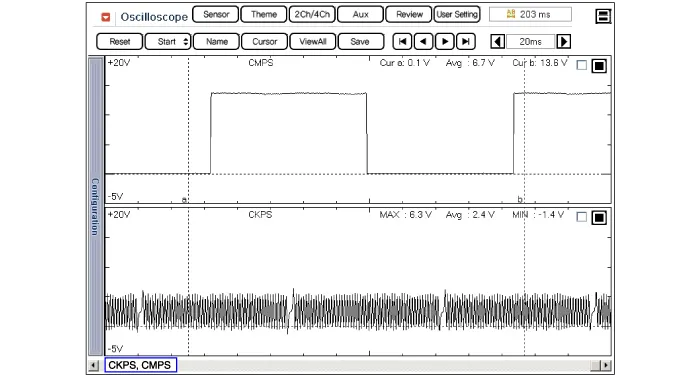

Check signal waveform of CKPS and CMPS using a scan tool.
|
Specification : Refer to “Waveform”
|
|
| • |
DON’T remove the camshaft position sensor during engine running
or right after engine stops, or a scald by the flowed out engine
oil may occur.
|
|
| 1. |
Turn ignition switch OFF and disconnect the battery negative (-) terminal.
|
| 2. |
Remove the cleaner.
(Refer to Engine Mechanical System - "Air Cleaner")
|
| 3. |

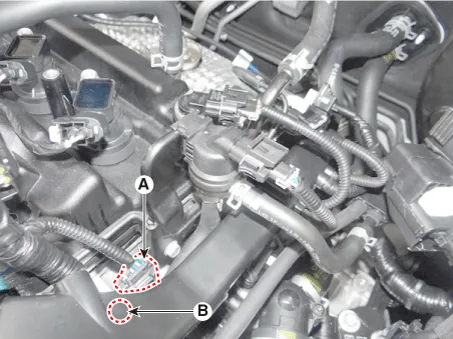

Disconnect the camshaft position sensor connector (A).
|
| 4. |
Remove the installation bolt (B), and then remove the sensor.
|
Camshaft position sensor installation bolt:
9.8 - 11.8 N.m (1.0 - 1.2 kgf.m, 7.2 - 8.7 lb-ft)
|
[Bank 1/Intake]
|
| 5. |
Turn ignition switch OFF and disconnect the battery negative (-) terminal.
|
| 6. |

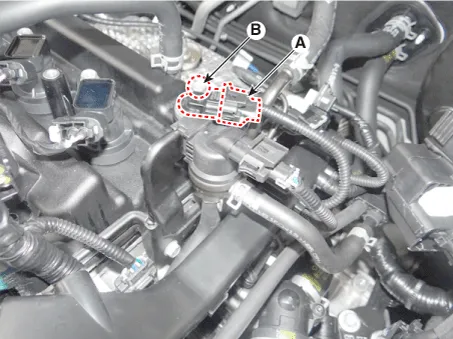

Disconnect the camshaft position sensor connector (A).
|
| 7. |
Remove the installation bolt (B), and then remove the sensor.
|
Camshaft position sensor installation bolt:
9.8 - 11.8 N.m (1.0 - 1.2 kgf.m, 7.2 - 8.7 lb-ft)
|
[Bank 1/Exhaust]
|
| • |
Install the component with the specified torques.
|
| • |
Note that internal damage may occur when the component is dropped.
In this case, use it after inspecting.
|
| • |
Apply the engine oil to the O-ring.
|
| • |
Insert the sensor in the installation hole and be careful not
to damage when installation.
|
| • |
Be careful not to damage the sensor housing and the connector.
|
| • |
Be careful not to damage the O-ring.
|
|
| 1. |
Installation is reverse of removal.
|
Troubleshooting
