Kia Rio: Windshield defrosting and defogging / Automatic climate control system

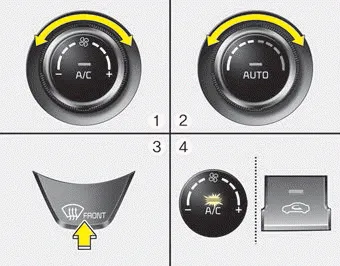

To defog inside windshield
1. Select desired fan speed. 2. Select desired temperature. 3. Press the defroster
button (
). 4. The outside (fresh) air
position will be selected automatically.
If the outside (fresh) air position is not selected automatically, adjust the corresponding button manually.
If the
position is selected, lower
fan speed is adjusted to a higher fan speed.

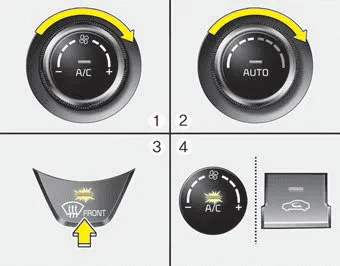

To defrost outside windshield
1. Set the fan speed to the highest position.
2. Set the temperature to the highest (HI) position.
3. Press the defroster button (
).
4. The outside (fresh) air position will be selected automatically.
If the
position is selected, lower
fan speed is adjusted to a higher fan speed.
To defog inside windshield 1. Select any fan speed except "0" position. 2. Select desired temperature. 3. Select the or position. 4. The outside (fresh) air will be selected automatically.
To reduce the probability of fogging up inside of the windshield, the air intake or air conditioning are controlled automatically according to certain conditions such as or position.
