Kia Rio: Sunroof / Sunshade, Resetting the sunroof
Sunshade
When opening the sunroof, the sunshade will also open. Once the sunroof is closed, the sunshade can be manually closed.
Resetting the sunroof
Whenever the vehicle battery is disconnected or discharged, or related fuse is blown, you must reset your sunroof system as follows:
1.The ignition switch must be in the ON position.
2.Close the sunroof completely.
3.Release the control lever.
4.Push the control lever forward until the sunroof tilts and slightly moves up and
down. Then, release lever.
5.Push the control lever forward until the sunroof is operated as follows:
TILT OPEN → SLIDE OPEN → SLIDE CLOSE
Then, release the control lever.
✽ NOTICE
Do not release the lever until the operation is completed.
If you release the lever during operation, try again from step 2.
❈ For more detailed information, contact an authorized Kia dealer.
✽ NOTICE
If the sunroof is not reset when the vehicle battery is disconnected or discharged, or related fuse is blown, the sunroof may operate improperly.

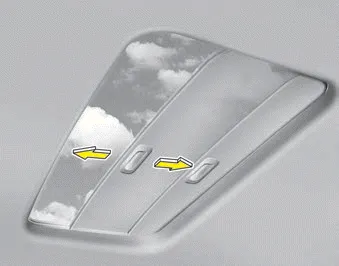

To tilt open the sunroof, push the sunroof control lever upward until the sunroof moves to the desired position. To close the sunroof, push the sunroof lever forward or pull downward until the sunroof moves to the desired position.
Electric power steering (EPS) Power steering uses a motor to assist you in steering the vehicle. If the engine is off or if the power steering system becomes inoperative, the vehicle may still be steered, but it will require increased steering effort.
